Input Shaft and Countershaft Components

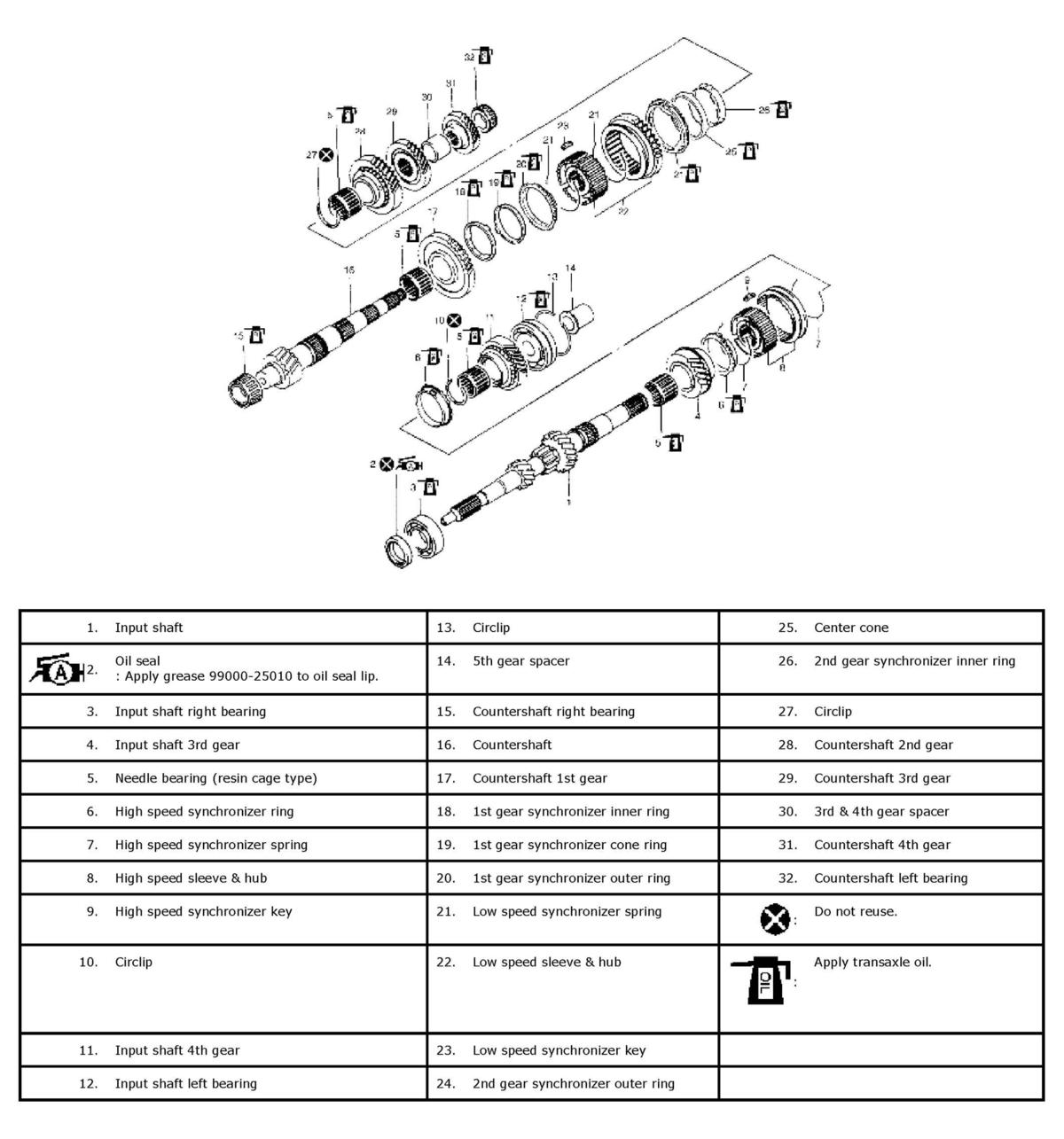

Fig 1: Identifying Input Shaft And Countershaft Components

G04592205

Courtesy of SUZUKI OF AMERICA CORP.
