Center Support Components

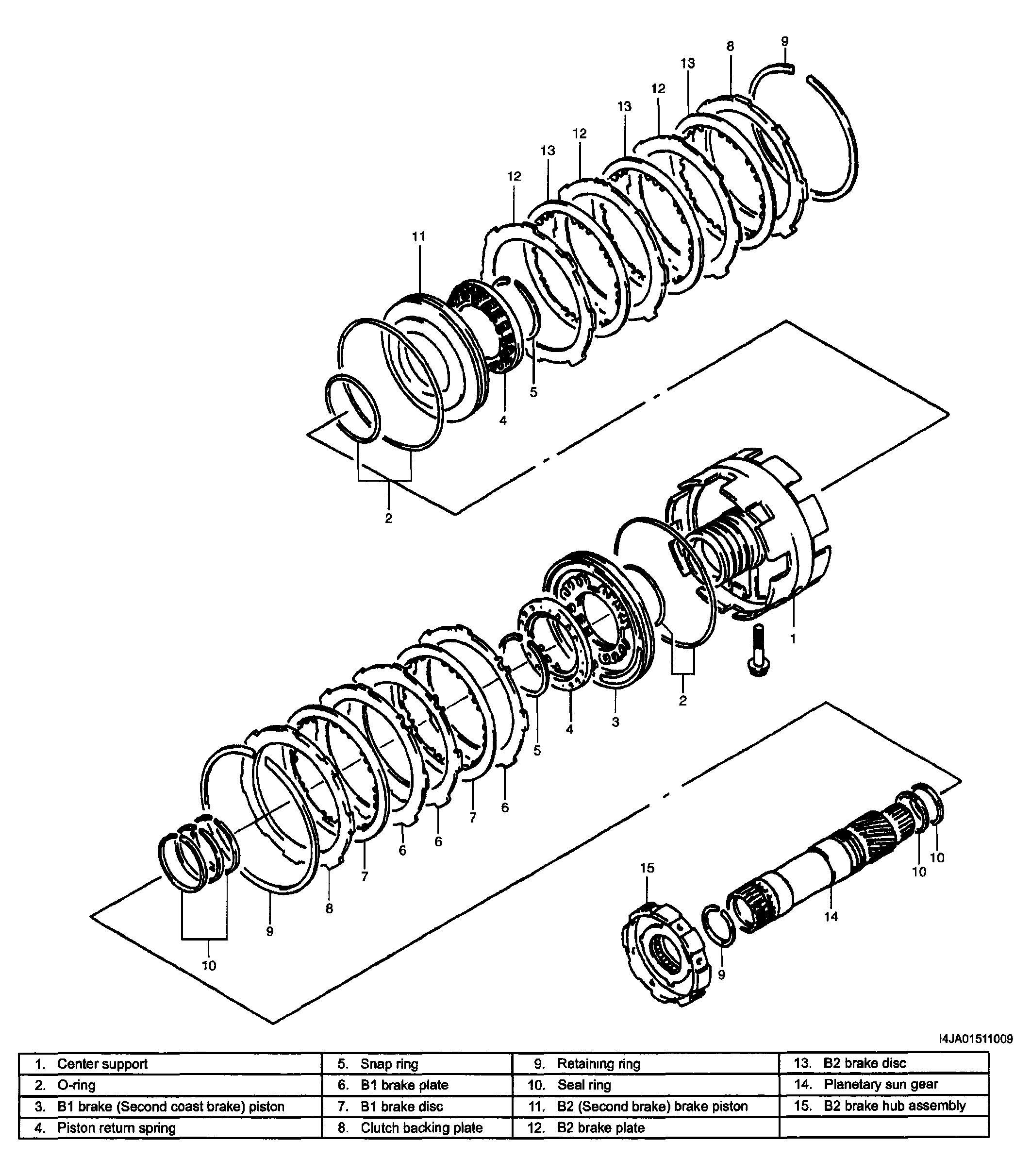

Fig 1: Identifying Center Support Components

G04099644

Courtesy of SUZUKI OF AMERICA CORP.
