Exhaust System Components

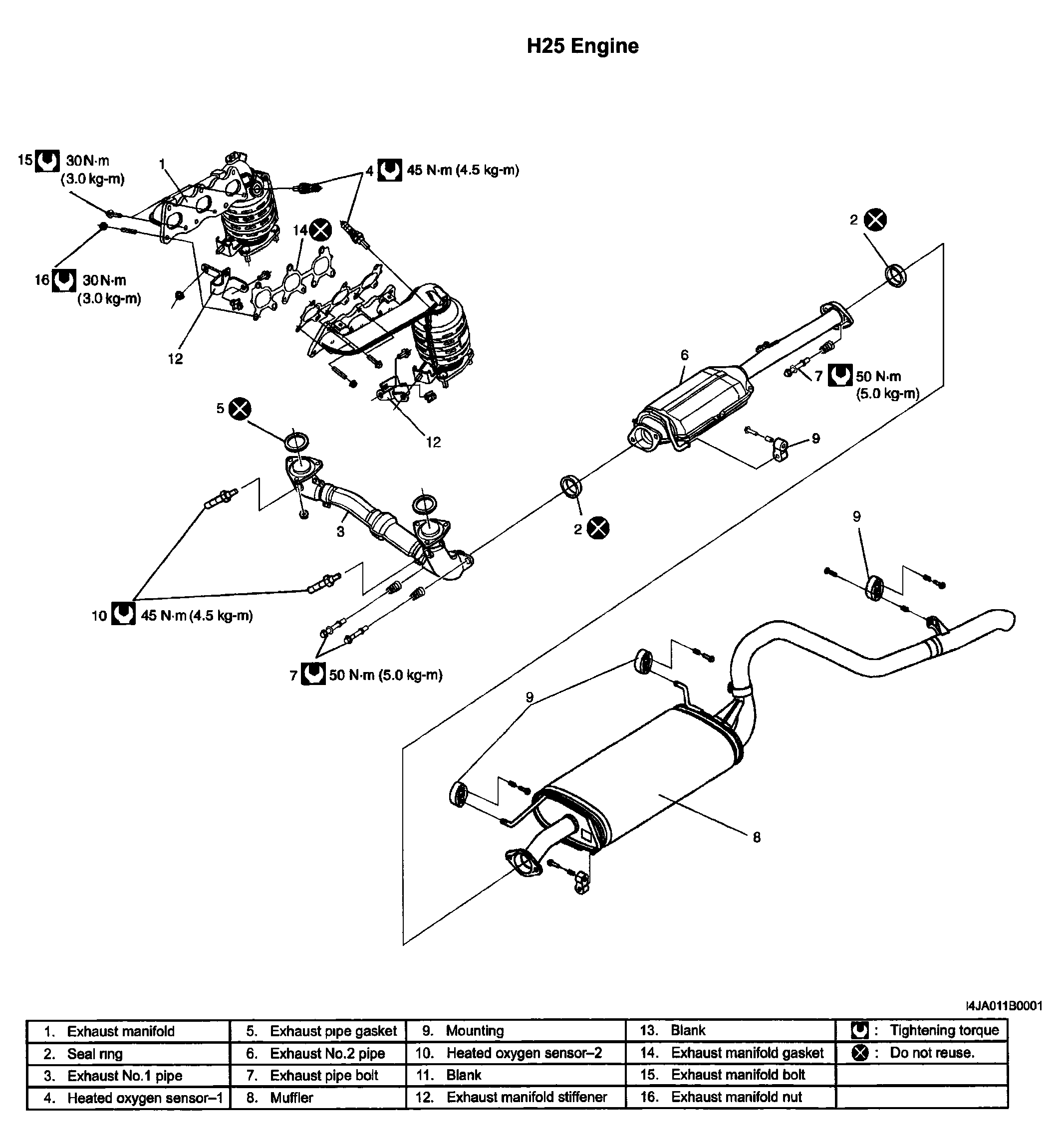

Fig 1: Identifying Exhaust System Components (1 Of 2)
G04098300Courtesy of SUZUKI OF AMERICA CORP.

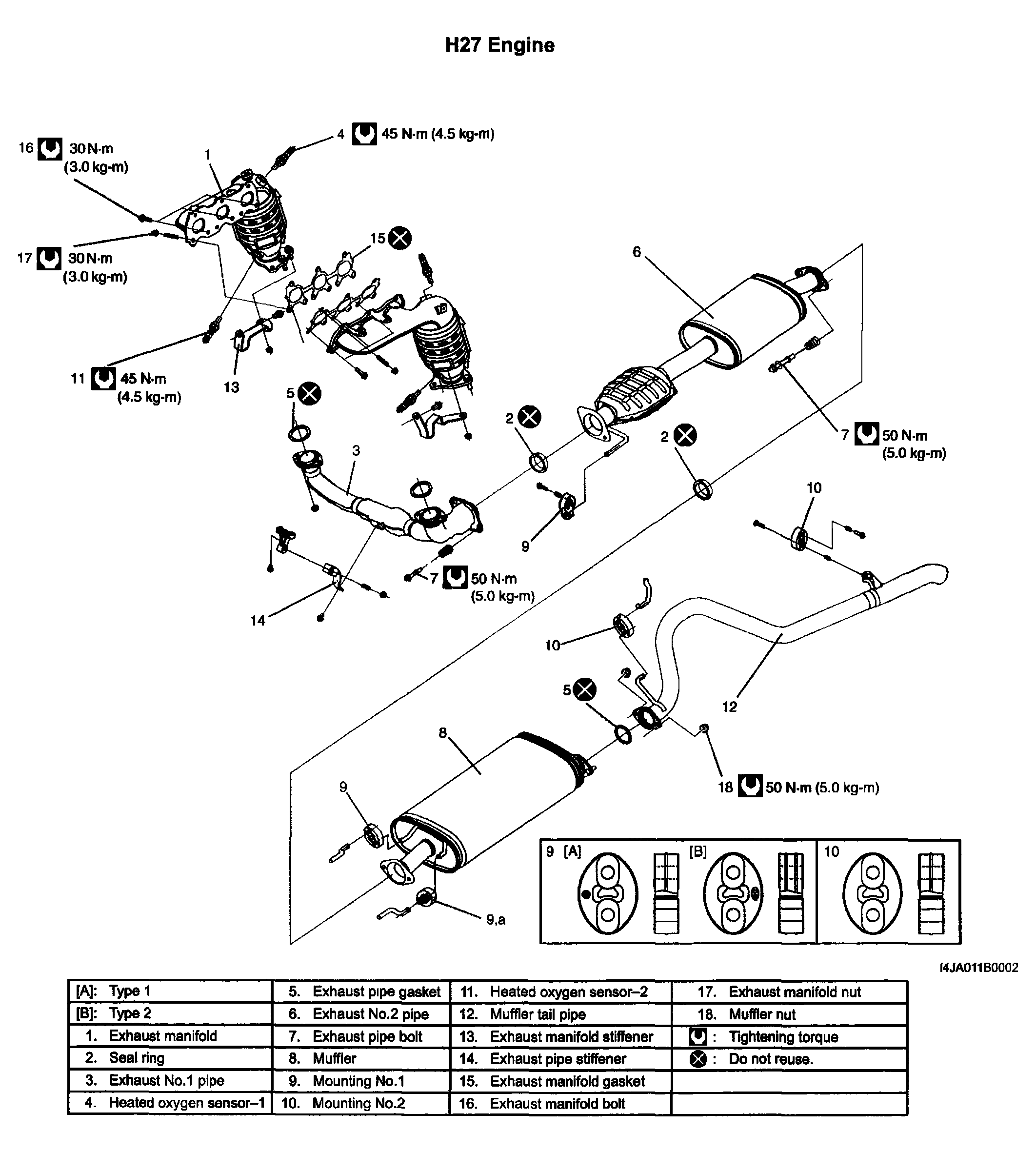

Fig 2: Identifying Exhaust System Components (2 Of 2)
G04098301Courtesy of SUZUKI OF AMERICA CORP.
