Home >> Suzuki >> 2005 >> XL-7 EX, RWD >> Repair and Diagnosis >> Engine Mechanical >> Exhaust System >> Repair Instructions >> Exhaust Manifold Components

Exhaust Manifold Components

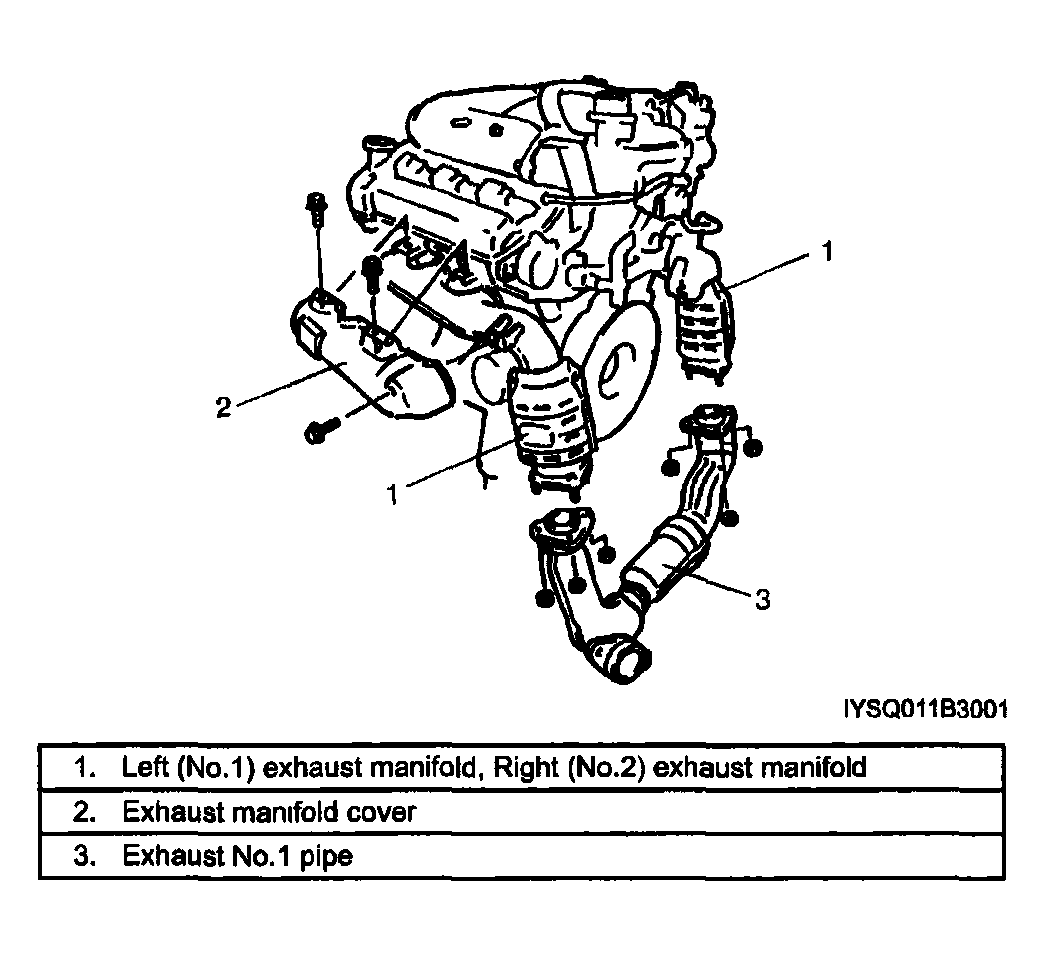

Fig 1: Identifying Exhaust Manifold Components
G04098302Courtesy of SUZUKI OF AMERICA CORP.
