H27 engine

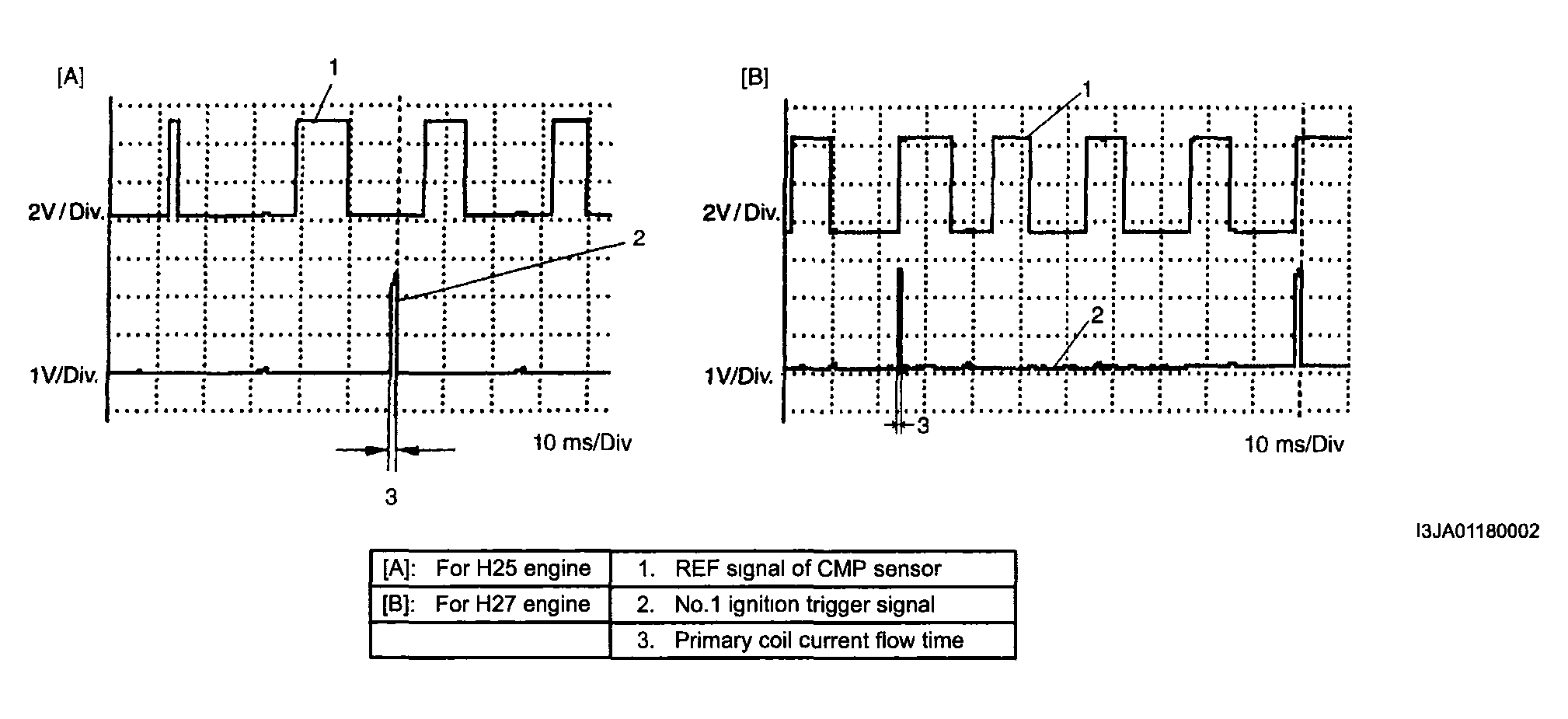

Oscilloscope waveforms of CMP sensor REF signal and No.1 ignition trigger signal are as shown in figure when connecting oscilloscope between terminal "C51-1-13" of ECM connector connected to ECM and ground, and between terminal "C51-2-28" and ground.

Fig 1: Identifying Oscilloscope Waveforms Of CMP Sensor REF Signal (H25 Engine & H27 Engine)
G04098195Courtesy of SUZUKI OF AMERICA CORP.
