Engine and Emission Control System Description

When hoses are disconnected and system components are removed for service, reinstall components properly, and route and connect hoses correctly after service. Refer to the figure for proper routing of hoses.

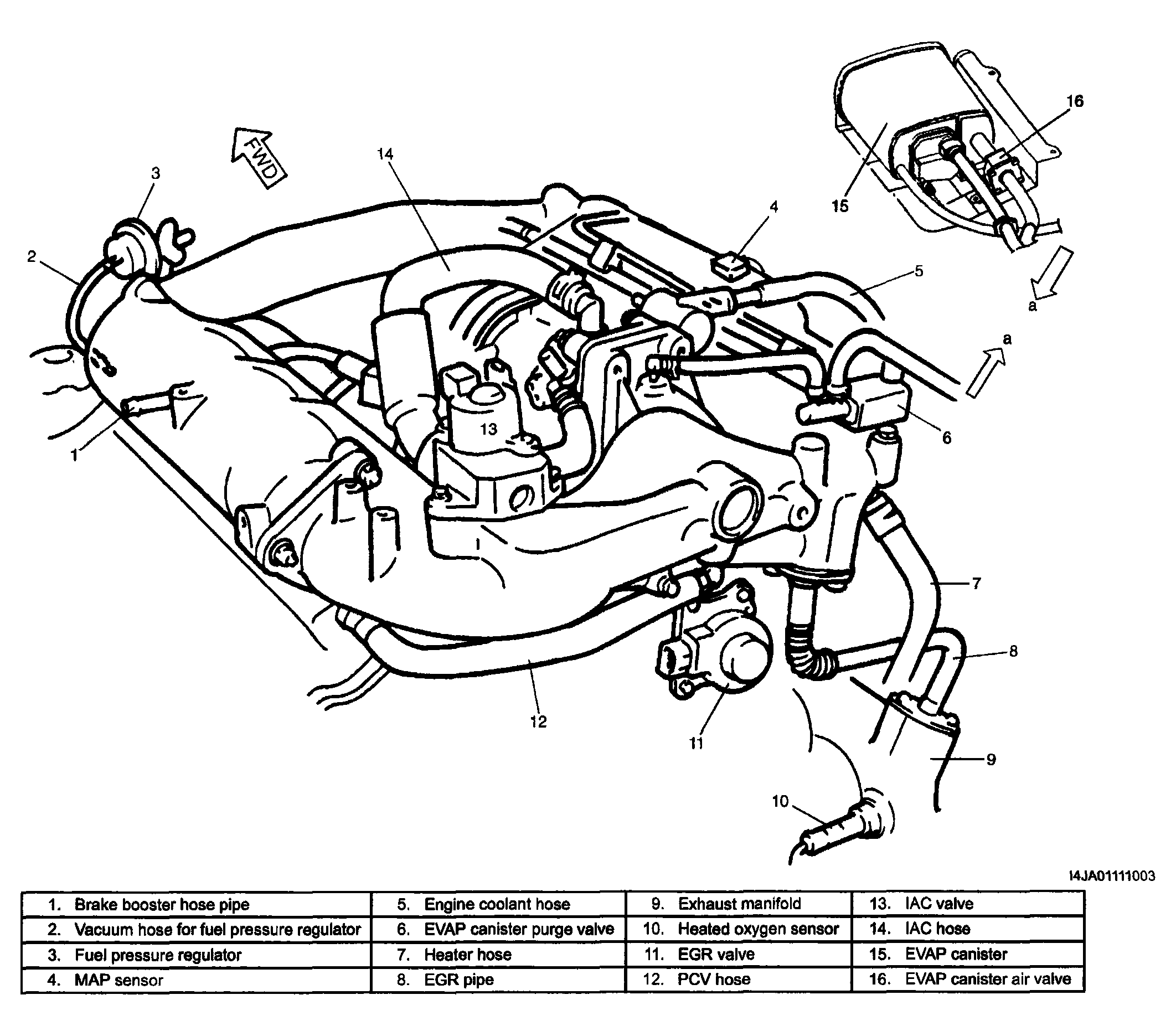

Fig 1: Identifying Engine And Emission Control System Hose And Piping Location
G04097341Courtesy of SUZUKI OF AMERICA CORP.
