Home >> Suzuki >> 2005 >> Verona S >> Repair and Diagnosis >> Transmission >> Automatic Transmission >> Diagnostic Information and Procedures >> DTC P1841 EDS 3 Output Open >> Notes

DTC P1841 EDS 3 Output Open: Notes

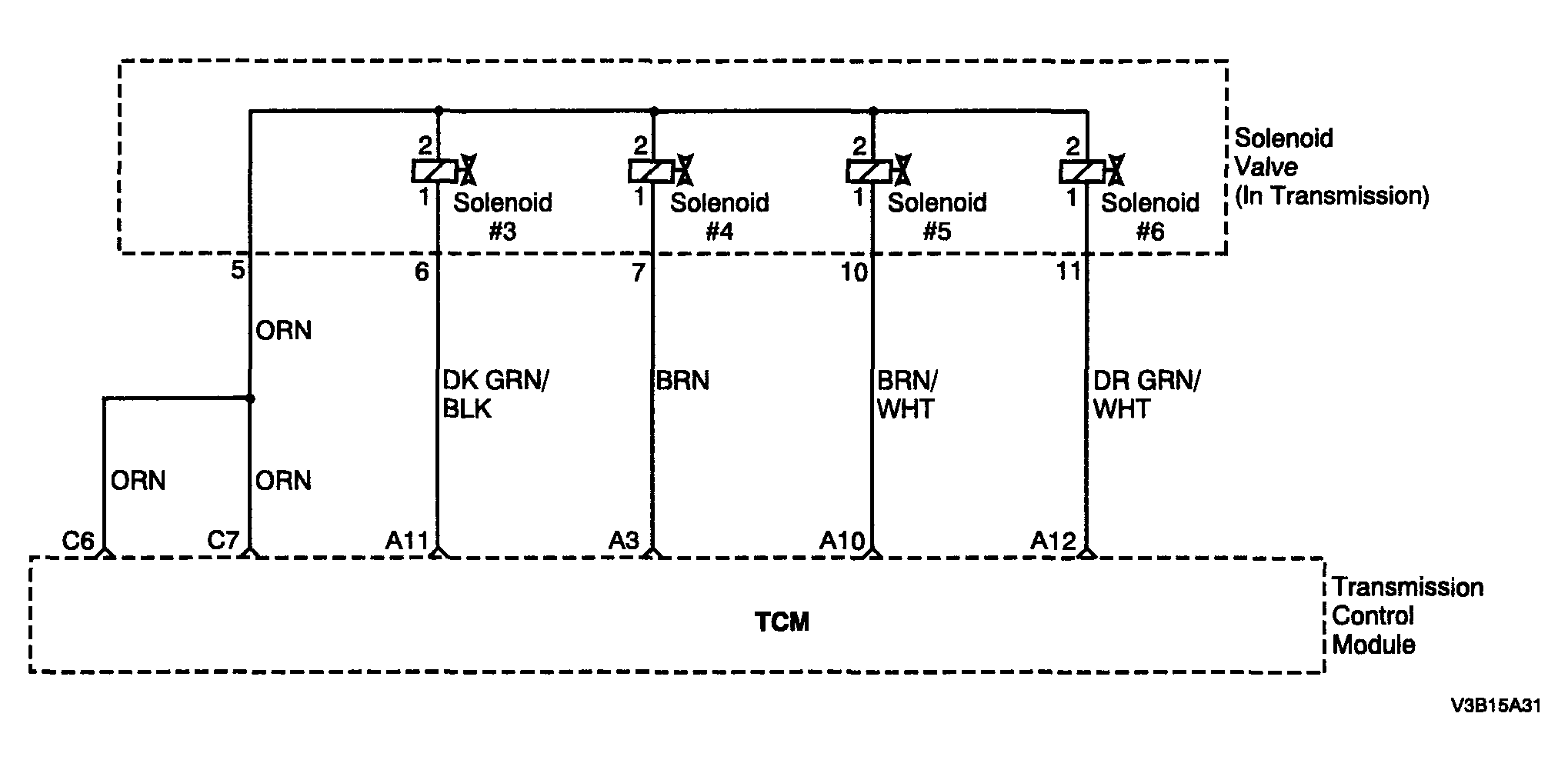

Fig 1: DTC P1841 EDS 3 Output Circuit Open

G04095381

Courtesy of SUZUKI OF AMERICA CORP.
