DTC P0134 HO2S Bank 1 Sensor 1 No Activity Detected: Notes

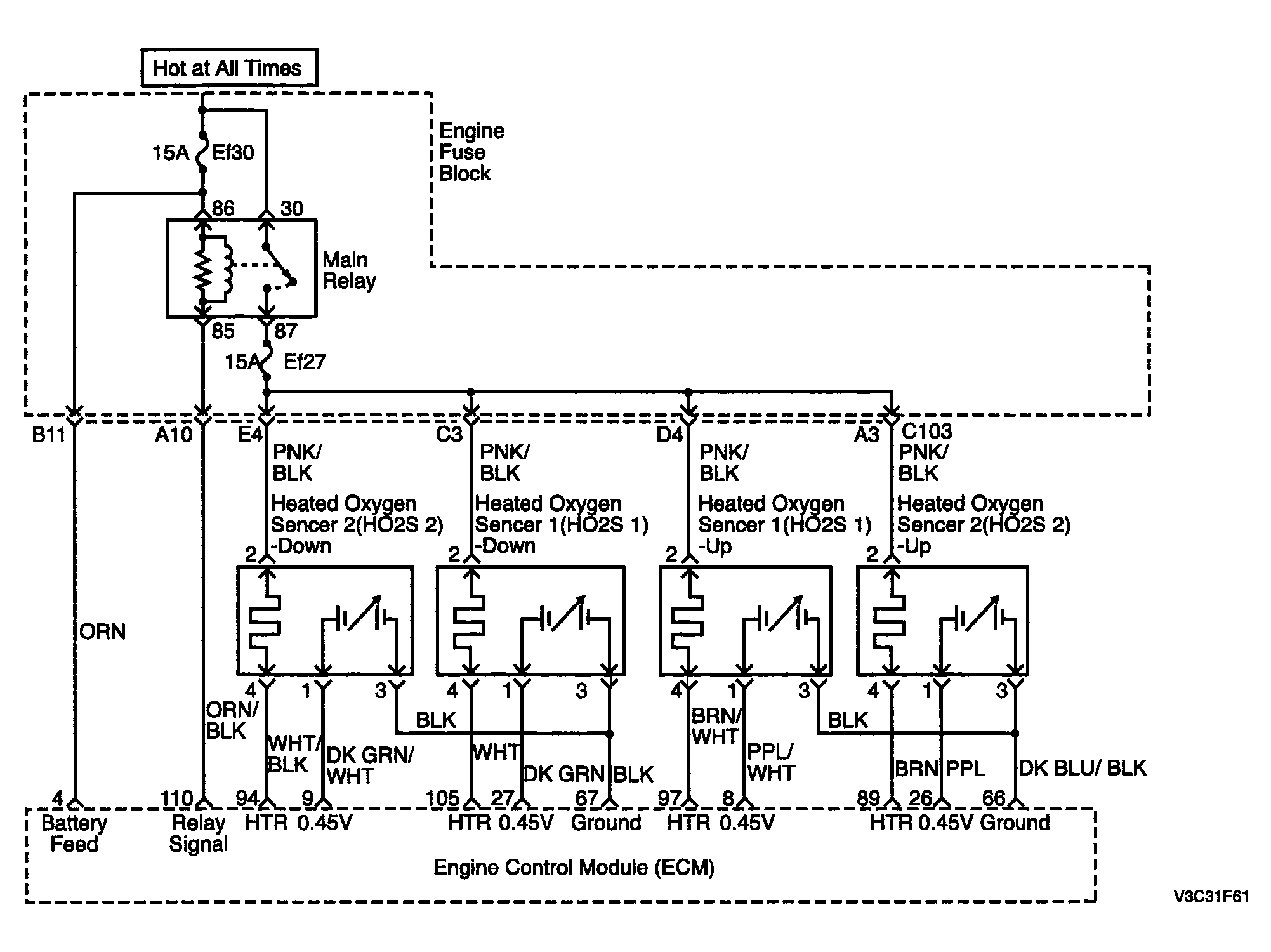

Fig 1: P0134 HO2S Bank 1 Sensor 1 No Activity Detected - Circuit Diagram

G04094441

Courtesy of SUZUKI OF AMERICA CORP.
