Windshield Removal

Tools Required

J-24402 Glass Sealant Remover

1. Remove the cowl vent grille. Refer to "COWL VENT GRILLE REMOVAL ".
2. Remove the inside rearview mirror.
3. Remove the weatherstrip around the windshield.

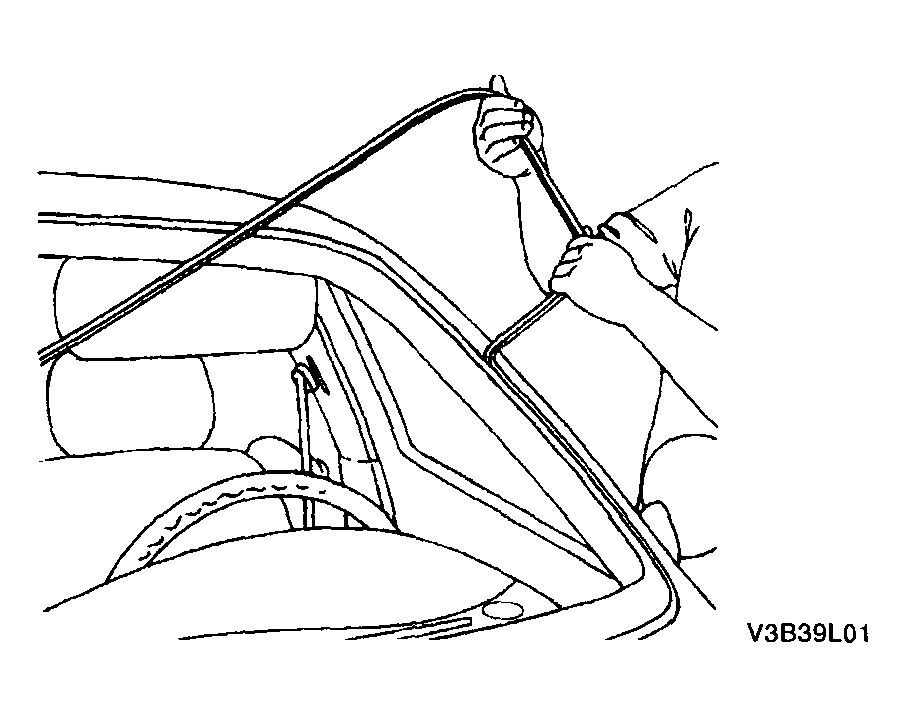

   Fig 1: Removing Weatherstrip Around Windshield

   Courtesy of SUZUKI OF AMERICA CORP.
4. Using the glass sealant remover J-24402, cut the adhesive around the windshield.
   Fig 2: Cutting Adhesive Around Windshield

   Courtesy of SUZUKI OF AMERICA CORP.
5. Remove the windshield from the vehicle.
6. Using a knife, remove the adhesive from the windshield.
7. Using a knife, remove the adhesive from the windshield frame.
   Fig 3: Removing Adhesive From Windshield Frame

   Courtesy of SUZUKI OF AMERICA CORP.
