Generator Removal

Disconnect the negative battery cable.
Remove the serpentine accessory drive belt by lowering the vehicle and turning the automatic tensioner roller bolt clockwise to relieve tension on the belt. Refer to "SERPENTINE ACCESSORY DRIVE BELT REMOVAL ".

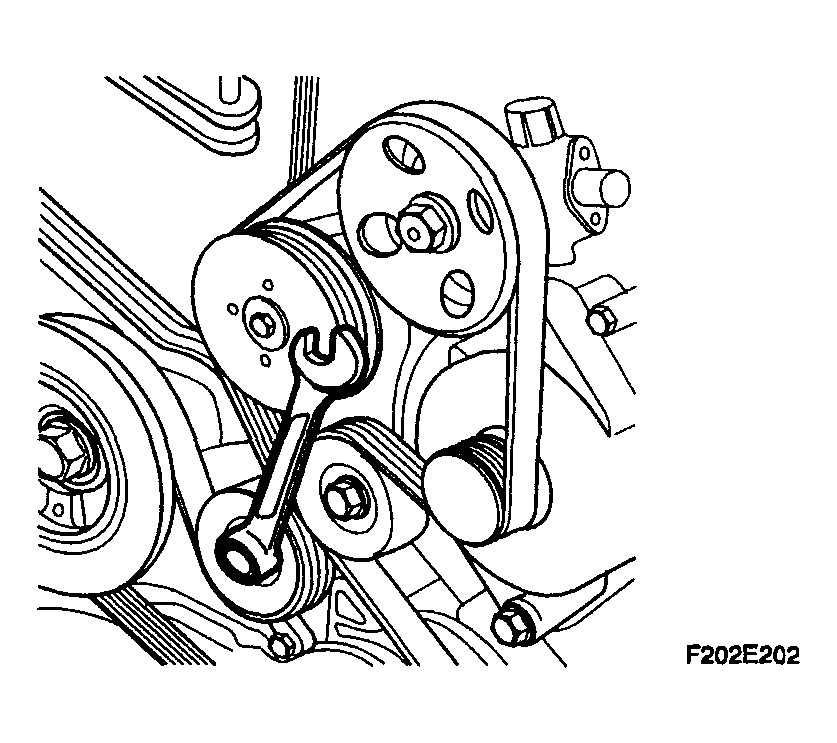

Fig 1: Removing Serpentine Accessory Drive Belt
Courtesy of SUZUKI OF AMERICA CORP.
Disconnect the harness connector from the back of the generator, and the generator lead to the battery.

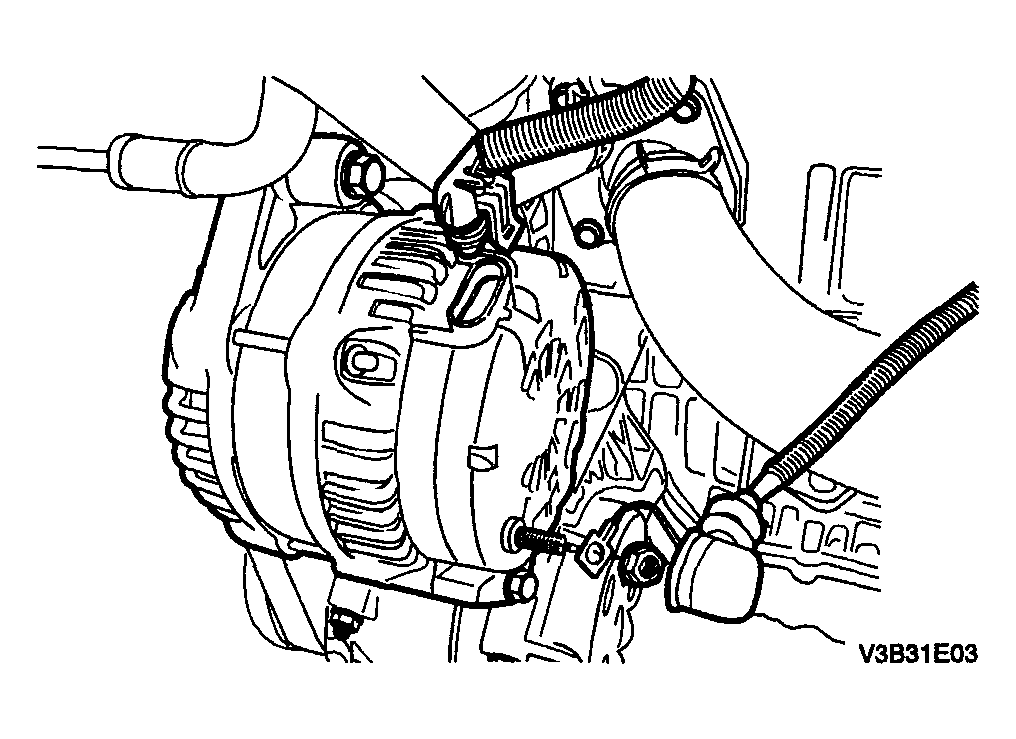

Fig 2: Disconnecting Harness Connector From Back Of Generator
Courtesy of SUZUKI OF AMERICA CORP.
Carefully remove the generator with the bolts.

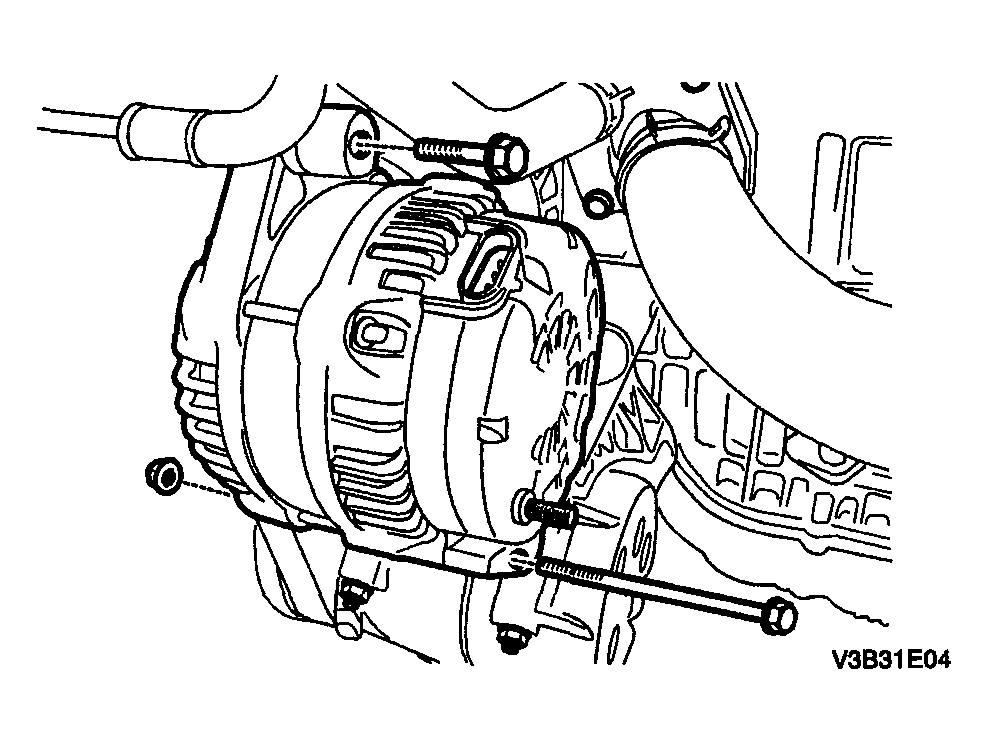

Fig 3: Removing Generator With Bolts
Courtesy of SUZUKI OF AMERICA CORP.
