Valve Body Components
Valve Body Components

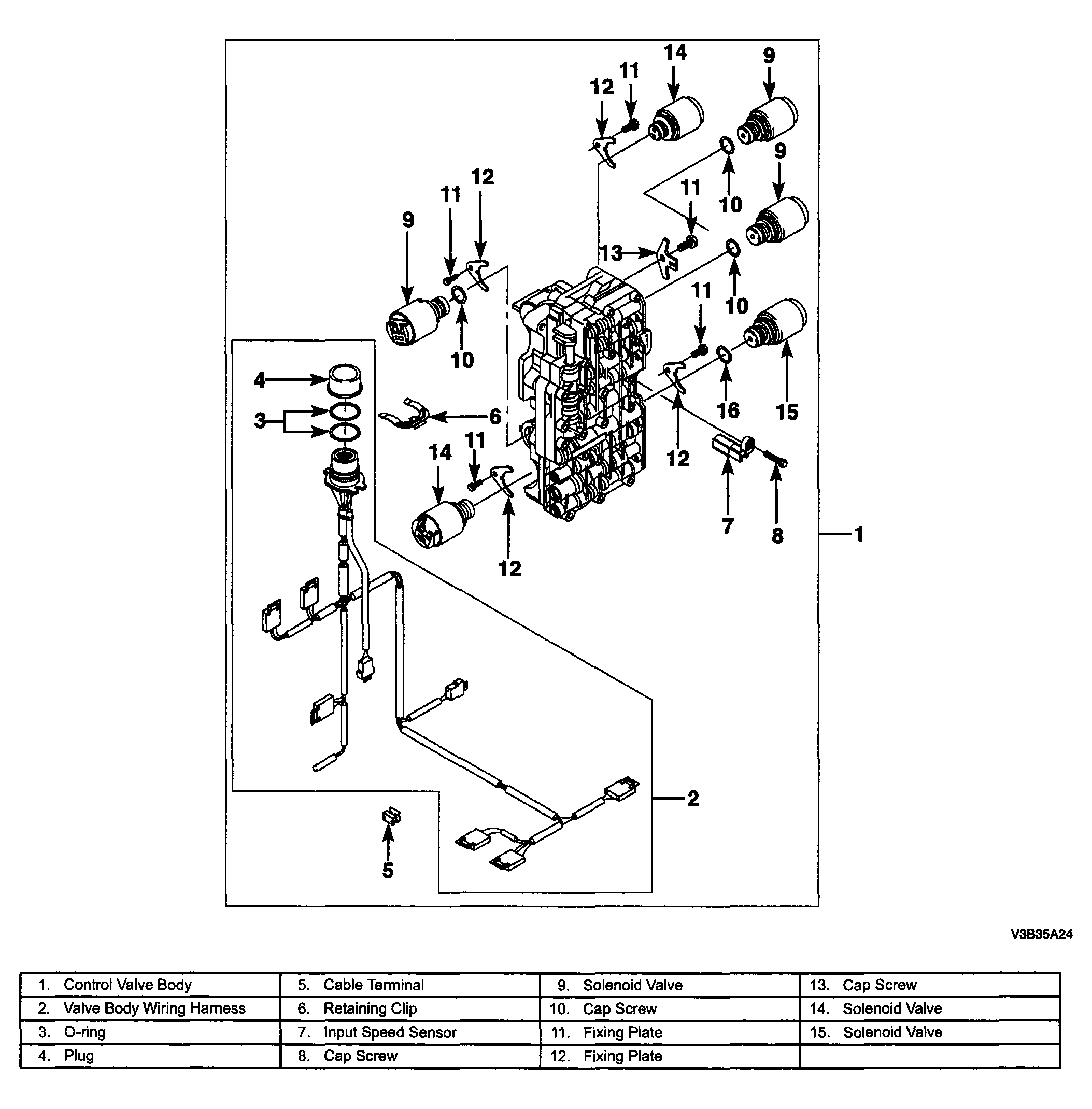

Fig 1: Identifying Valve Body Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
