Dust Boot Removal

Tools Required

KM-J-22610 Installer

1. Raise and suitably support the vehicle
2. Remove the wheel. Refer to "WHEEL REMOVAL ".
3. Remove the outer tie rod. Refer to "OUTER TIE ROD REMOVAL ".
4. Remove the dust boot retaining clamps.
5. Remove the dust boot.

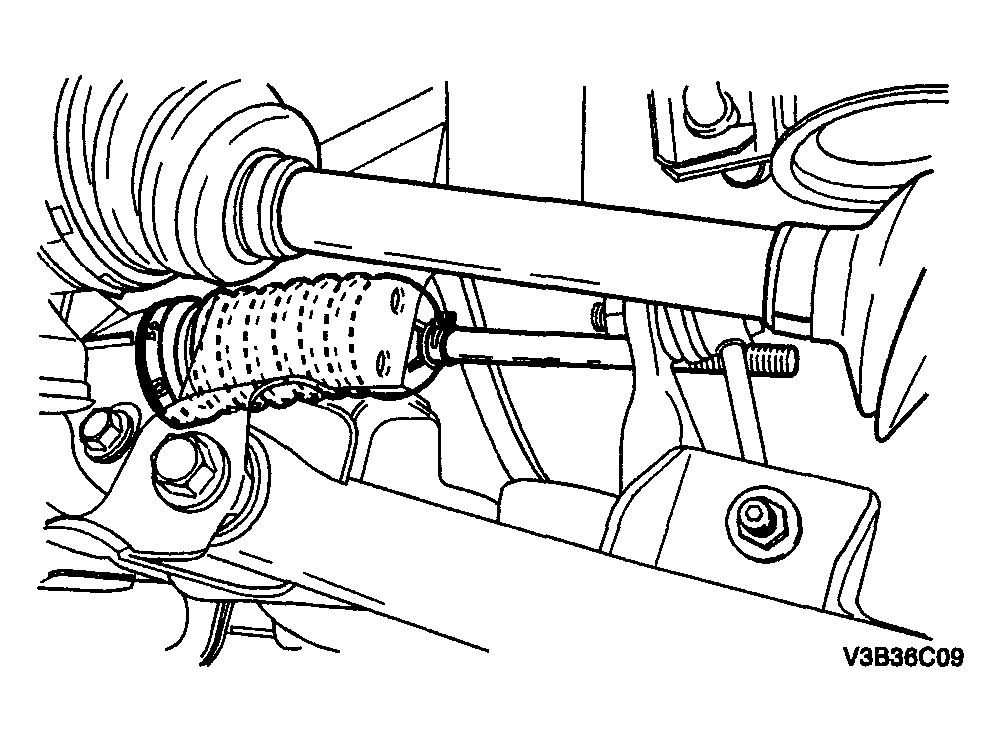

   Fig 1: Removing Dust Boot Retaining Clamps

   Courtesy of SUZUKI OF AMERICA CORP.
