Dust Boot Installation

  1. Install the dust boot.
  2. Install the tie rod end dust boot retaining clamp. Install the cylinder end dust boot retaining clamp with the installer KM-J-22610.
  3. Install the outer tie rod. Refer to "OUTER TIE ROD REMOVAL ".
  4. Install the wheel. Refer to "WHEEL INSTALLATION ".
  5. Lower the vehicle.

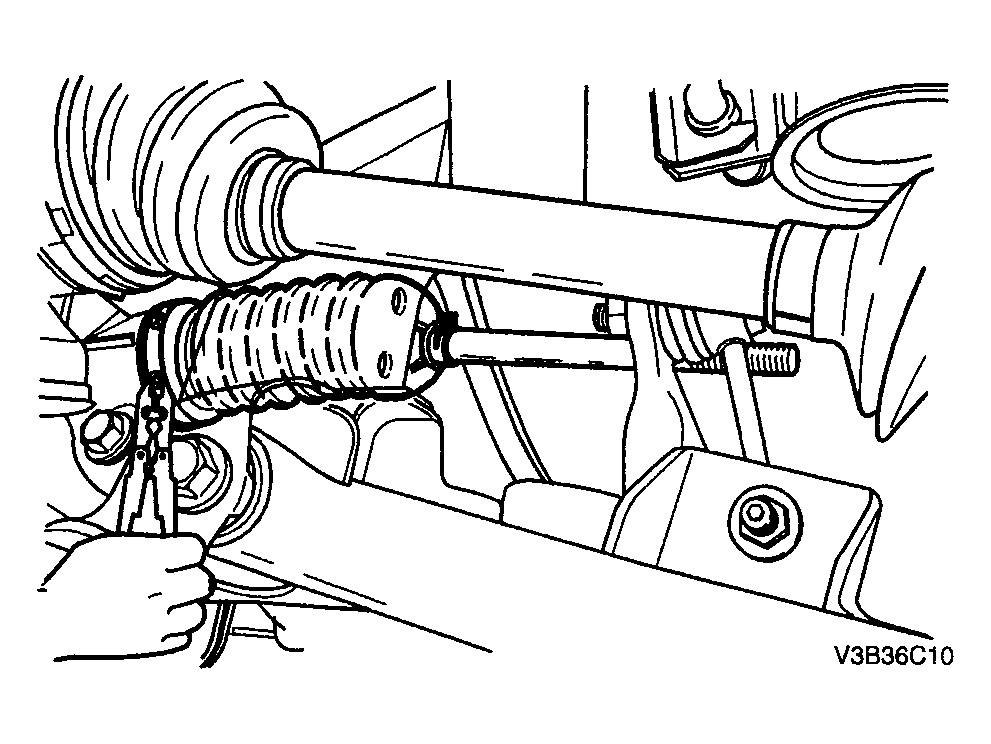

    Fig 1: Installing Dust Boot Retaining Clamps
    G04095714Courtesy of SUZUKI OF AMERICA CORP.
