DTC P0462 Fuel Level Sensor Low Input: Notes

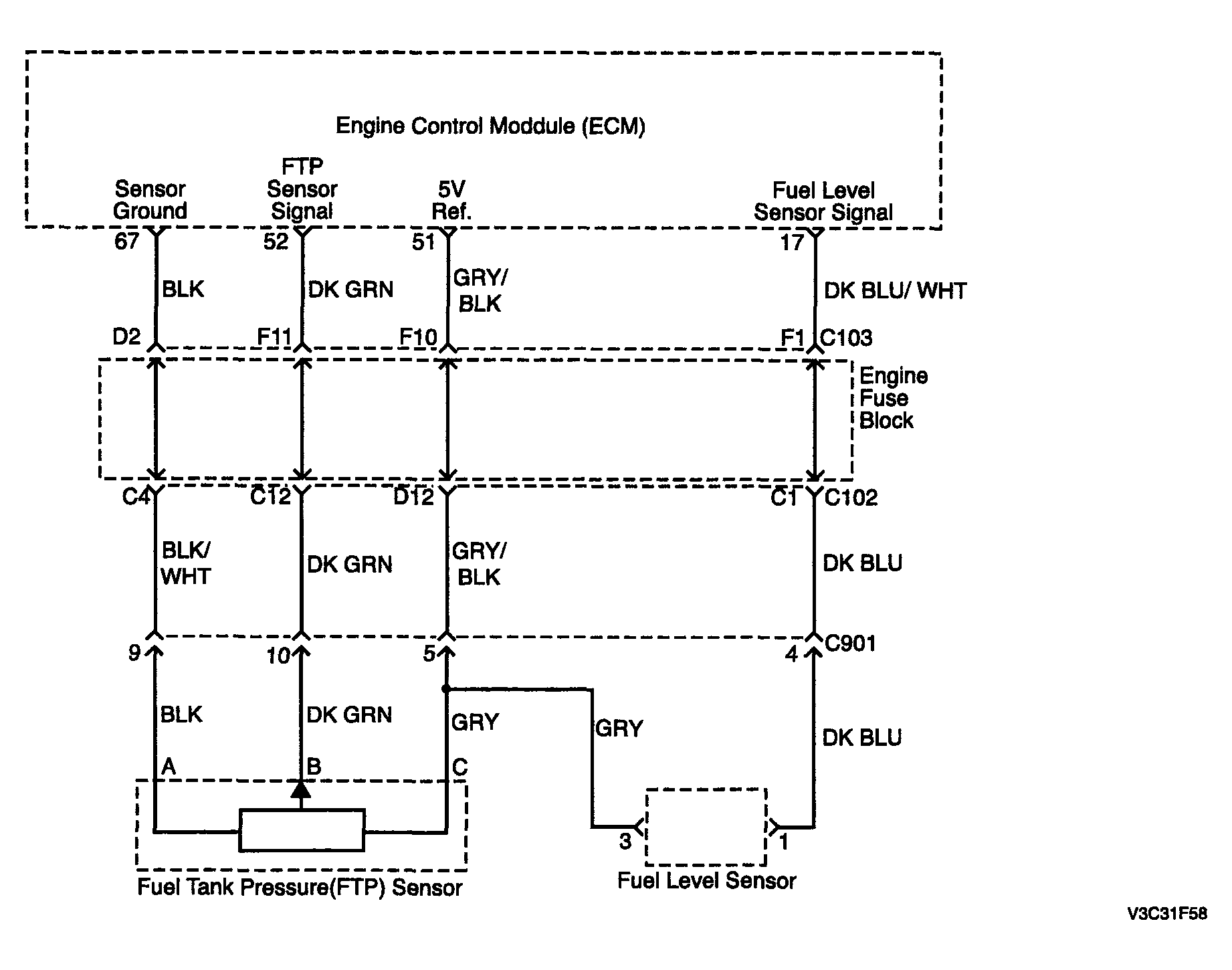

Fig 1: P0462 Fuel Level Sensor Low Input - Circuit Diagram

G04094499

Courtesy of SUZUKI OF AMERICA CORP.
