DTC P0461 Fuel Level Sensor Circuit Rationality Check: Notes

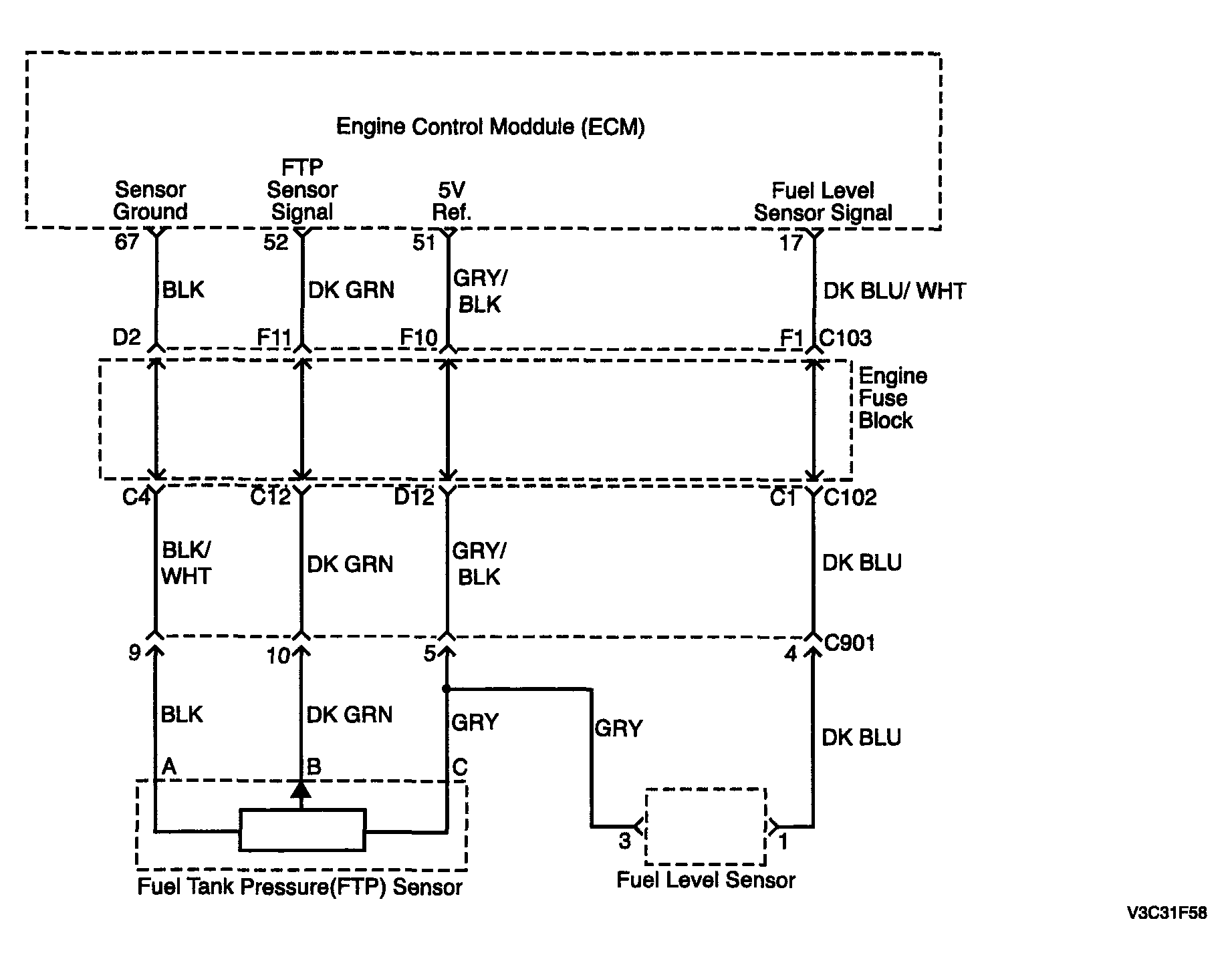

Fig 1: P0461 Fuel Level Sensor Circuit Rationality Check - Circuit Diagram

G04094498

Courtesy of SUZUKI OF AMERICA CORP.
