DTC P0448 EVAP Vent Control Circuit Shorted: Notes

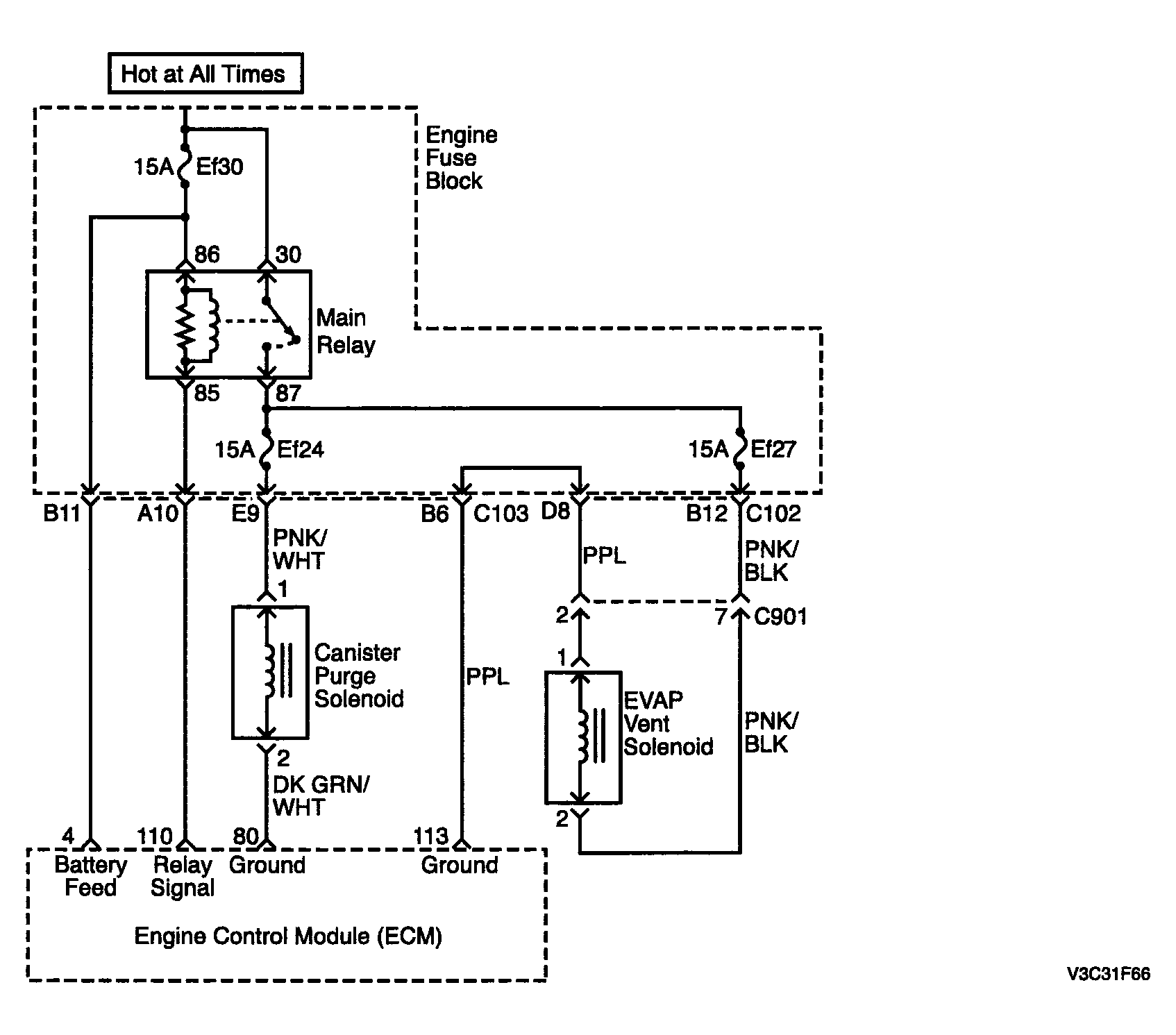

Fig 1: P0448 EVAP Vent Control Circuit Shorted - Circuit Diagram

G04094493

Courtesy of SUZUKI OF AMERICA CORP.
