DTC P0112 Intake Air Temperature Sensor Low Input: Notes

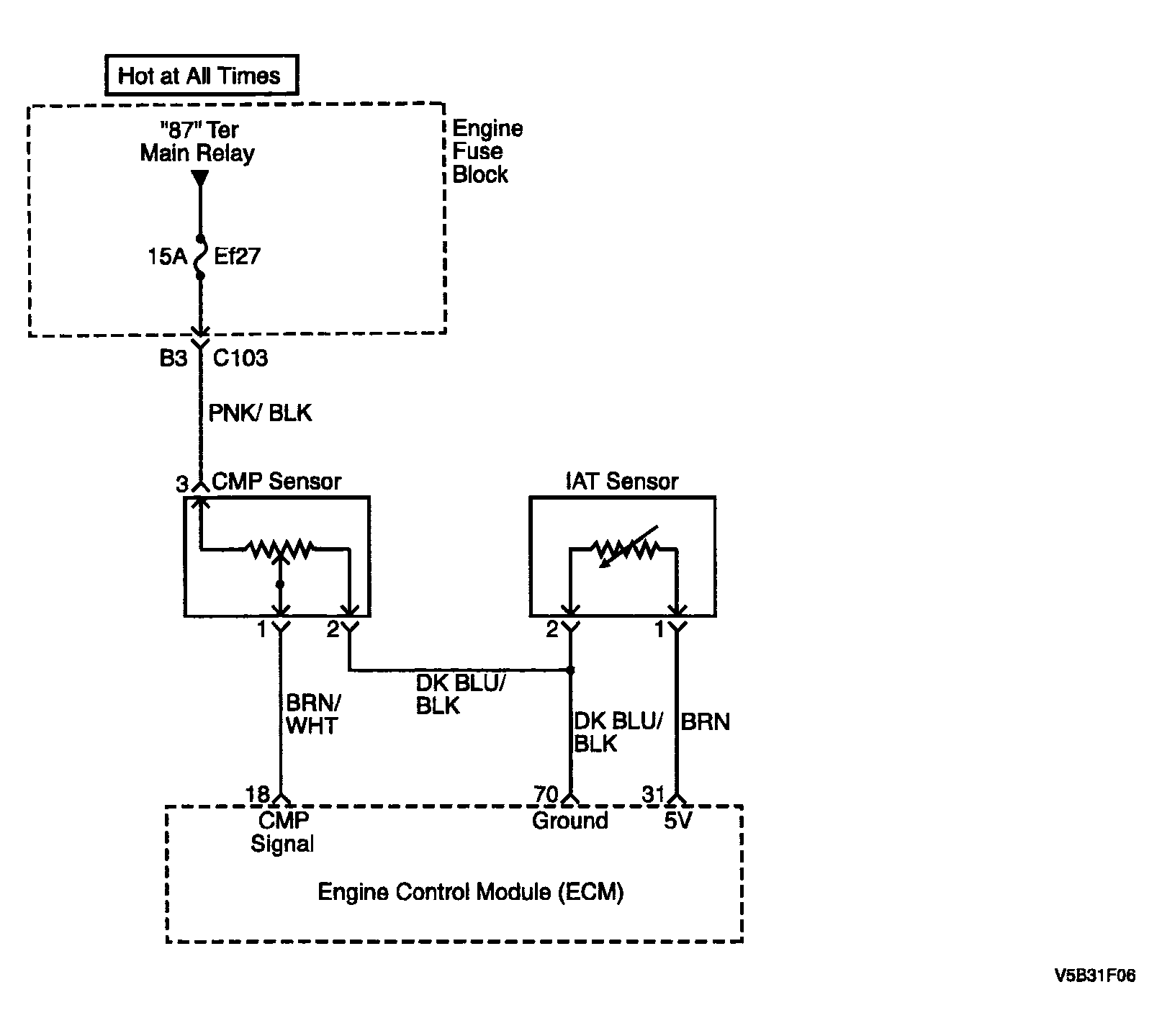

Fig 1: P0112 Intake Air Temperature Sensor Low Input - Circuit Diagram

G04094427

Courtesy of SUZUKI OF AMERICA CORP.
