DTC P0107 Manifold Absolute Pressure Sensor Low Input: Notes

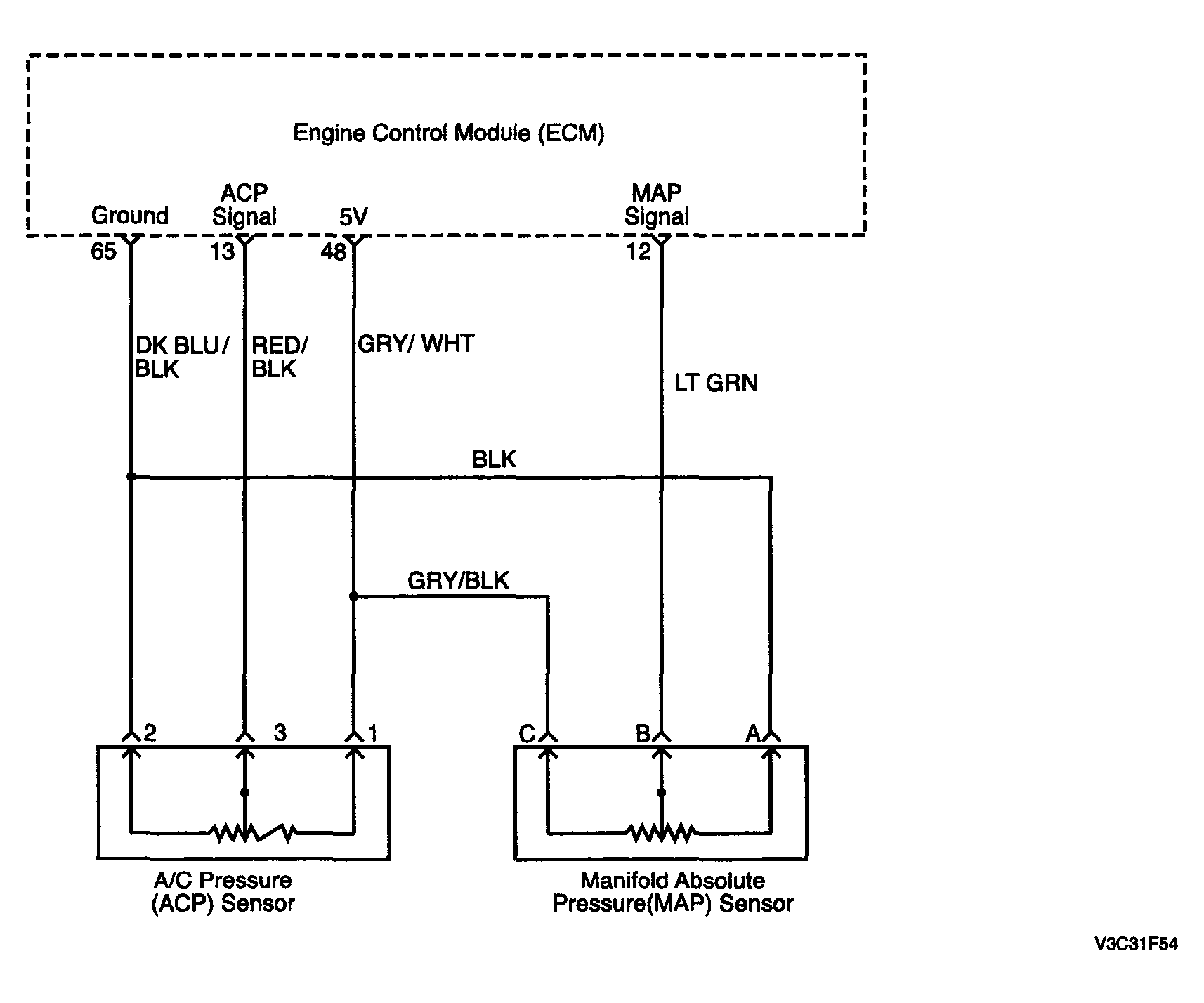

Fig 1: P0107 Manifold Absolute Pressure Sensor Low Input - Circuit Diagram

G04094425

Courtesy of SUZUKI OF AMERICA CORP.
