Heating Mat Switch Removal

  1. Disconnect the negative battery cable.
  2. Remove the rear console box and screws. Refer to "FLOOR CONSOLE REMOVAL ".
  3. Remove the automatic console cap.
  4. Remove the floor console cover.

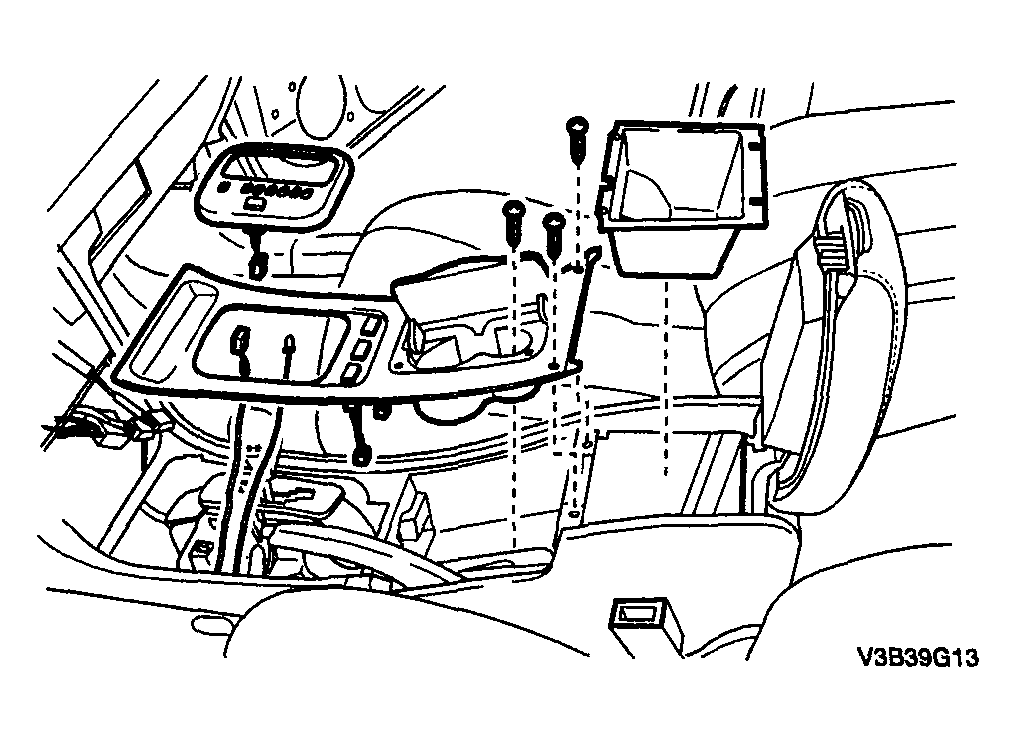

    Fig 1: Removing Floor Console Cover
    G04096322Courtesy of SUZUKI OF AMERICA CORP.
  5. Remove the console lamp and disconnect the connector.
  6. Remove the screws and the ashtray trim panel and disconnect the electrical connectors.
  7. Remove the heating mat switch.
