Inside Lock Rod Installation

  1. Connect the inside lock rods to the lock.
  2. Install the inside door handle. Refer to "INSIDE DOOR HANDLE INSTALLATION ".
  3. Install the door seal trim. Refer to "DOOR SEAL TRIM INSTALLATION ".

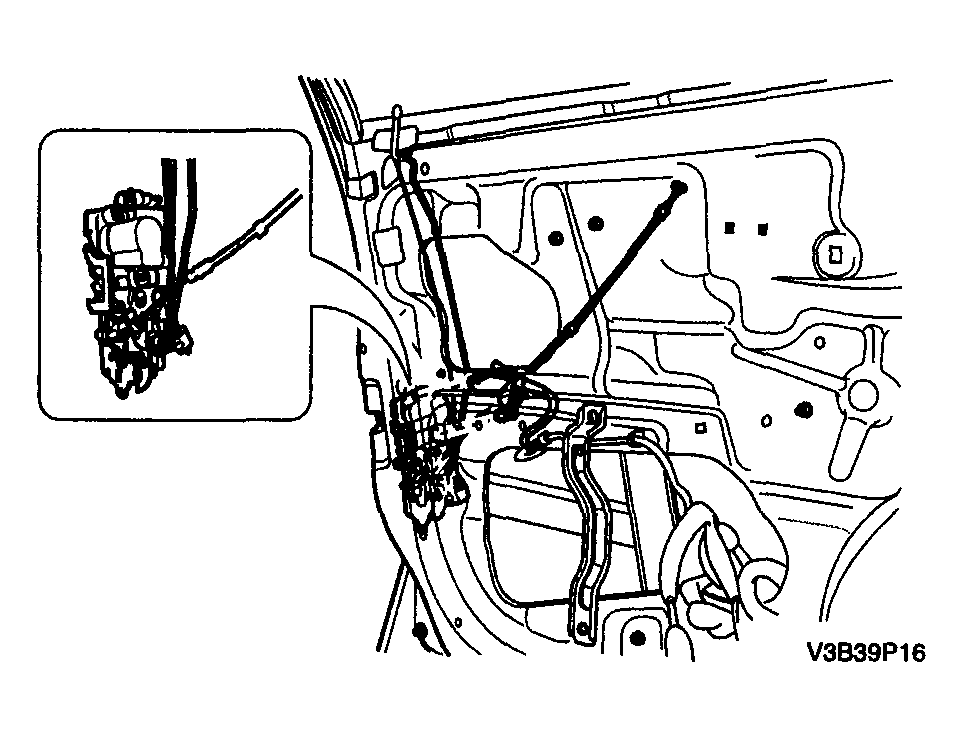

    Fig 1: Connecting Inside Lock Rods To Lock
    G04096265Courtesy of SUZUKI OF AMERICA CORP.
