Defogger Schematics

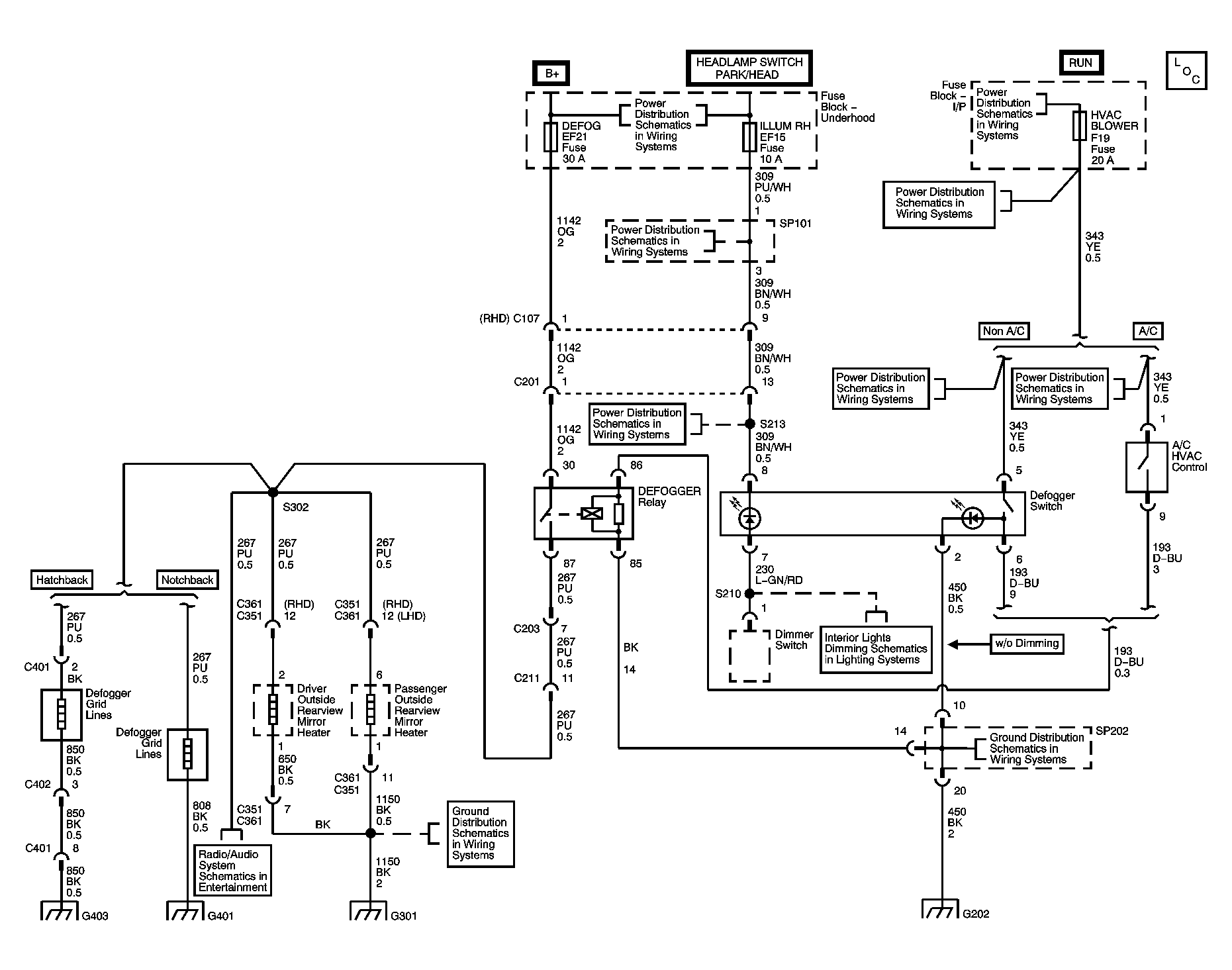

Fig 1: Rear Window Defogger and Heated Mirrors Schematics
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
