Removal Procedure

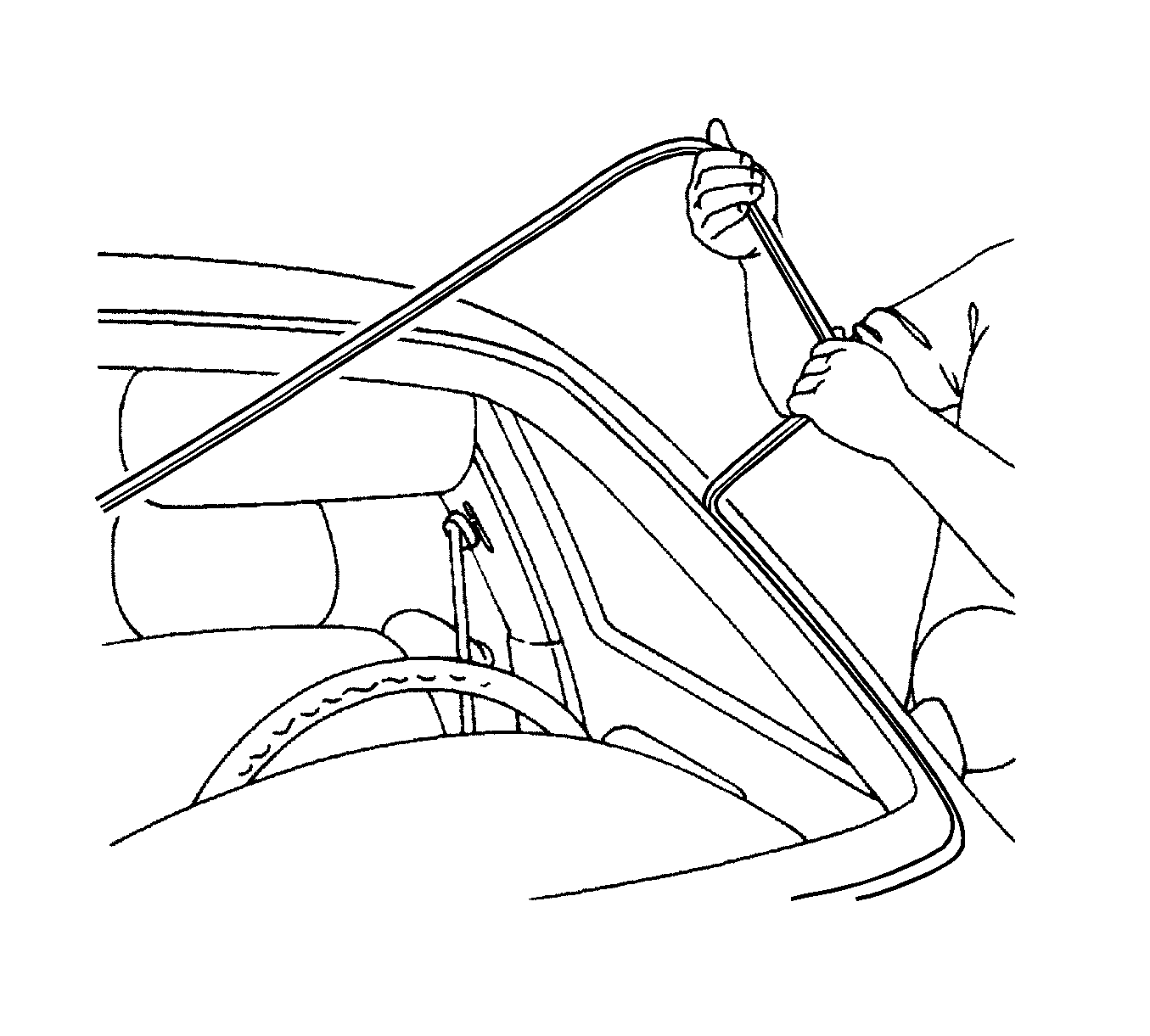

    Fig 1: Removing Weatherstrip Around Windshield
    GM1248250Courtesy of GENERAL MOTORS CORP.
  1. Remove the air inlet grille. Refer to Air Inlet Grille Panel Replacement in Body Front End.
  2. Remove the inside rearview mirror. Refer to Rearview Mirror Replacement .
  3. Remove the weatherstrip around the windshield.

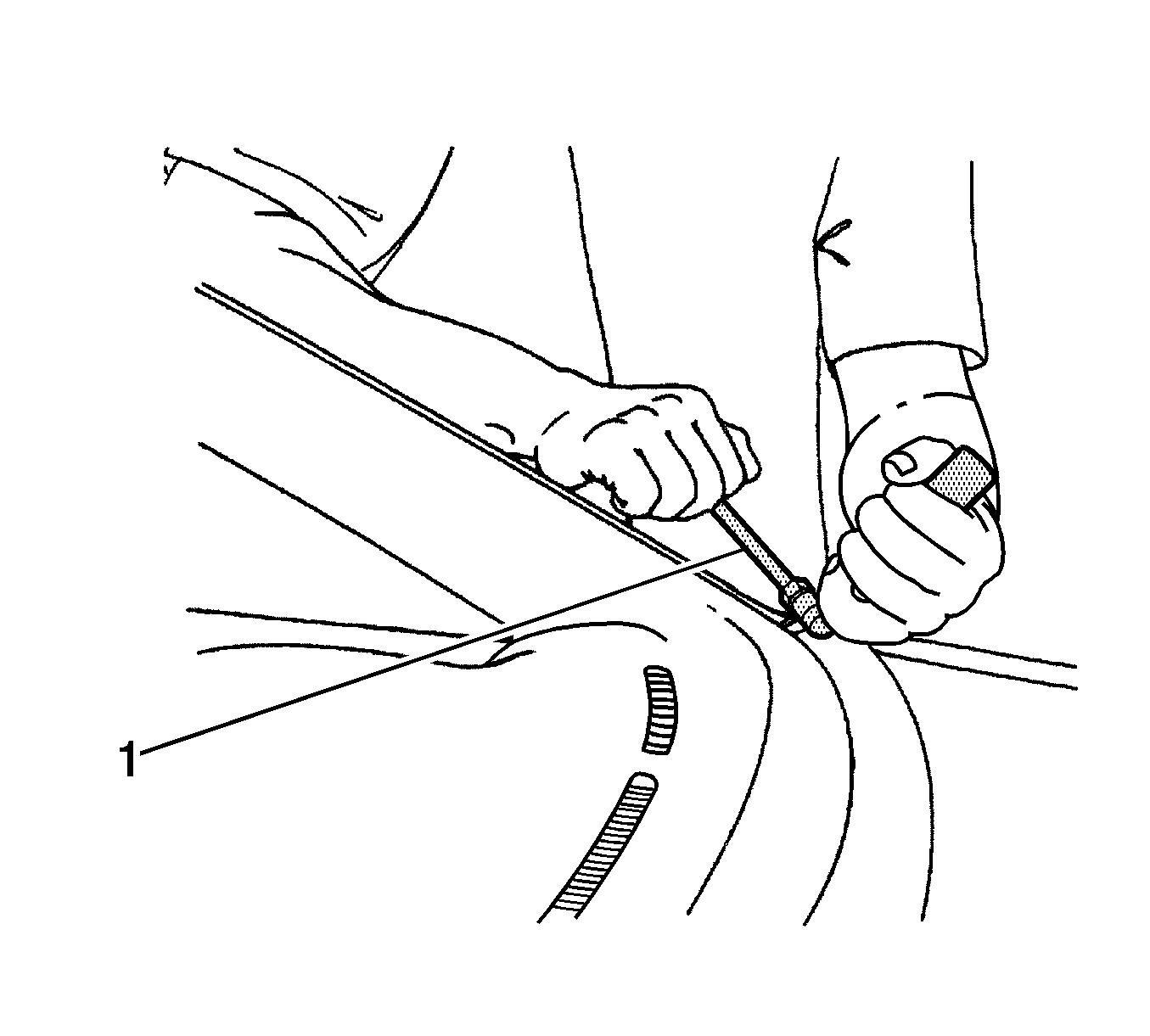

    4. Fig 2: View of Sealant Remover with J 24402-A
    GM1248252Courtesy of GENERAL MOTORS CORP.
  4. Using the glass sealant remover J 24402-A , cut the adhesive around the windshield.

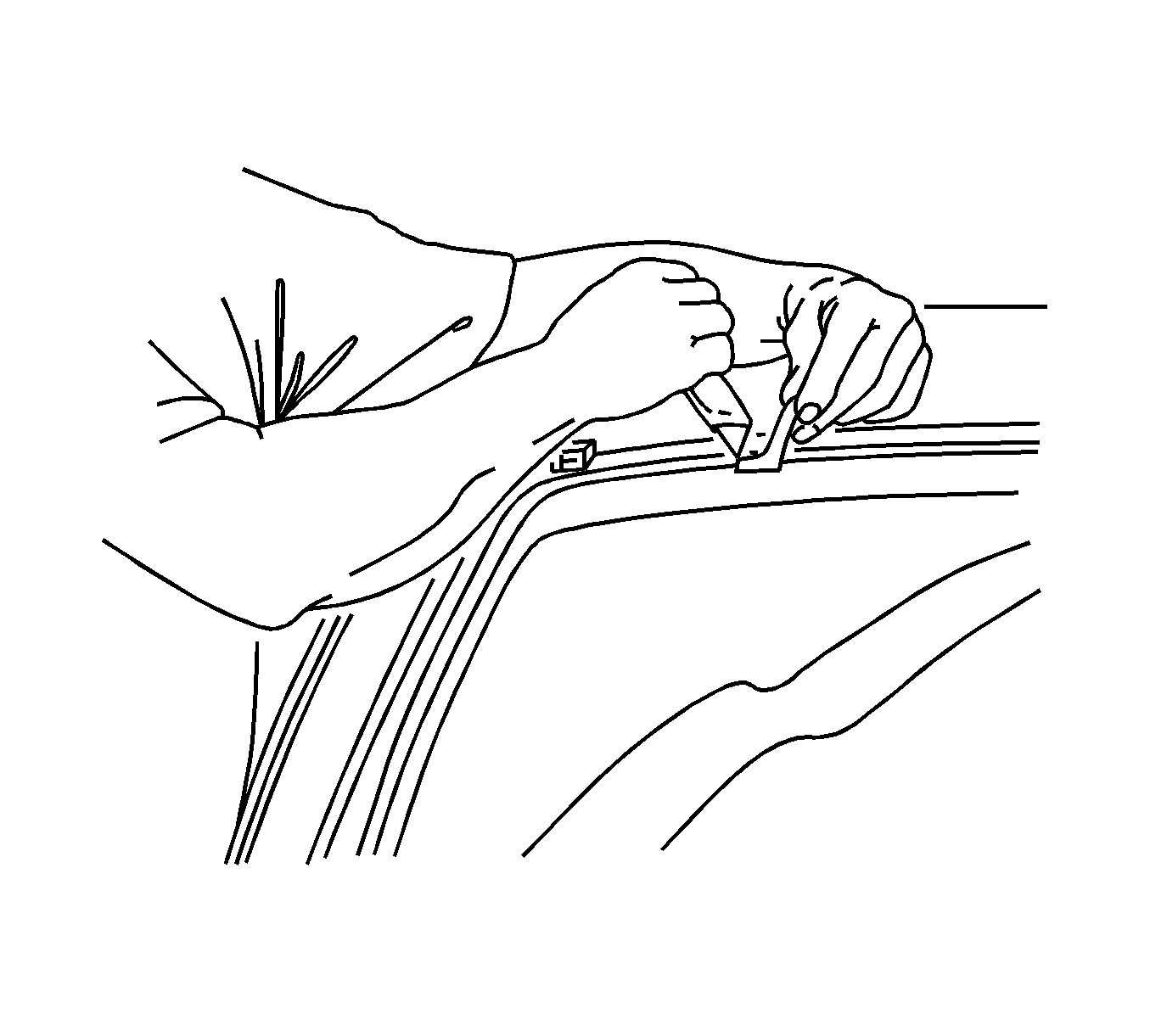

    5. Fig 3: Removal of Adhesive From Windshield and Windshield Frame with Knife
    GM1248253Courtesy of GENERAL MOTORS CORP.
  5. Remove the windshield from the vehicle.
  6. Using a knife, remove the adhesive from the windshield.
  7. Using a knife, remove the adhesive from the windshield frame.
