Removal Procedure

    Fig 1: View of Rear Window
    GM1248257Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.
  1. Disconnect the negative battery cable.
  2. Disconnect the rear window defogger electrical connectors, left side electrical connector shown, right side electrical connector similar.

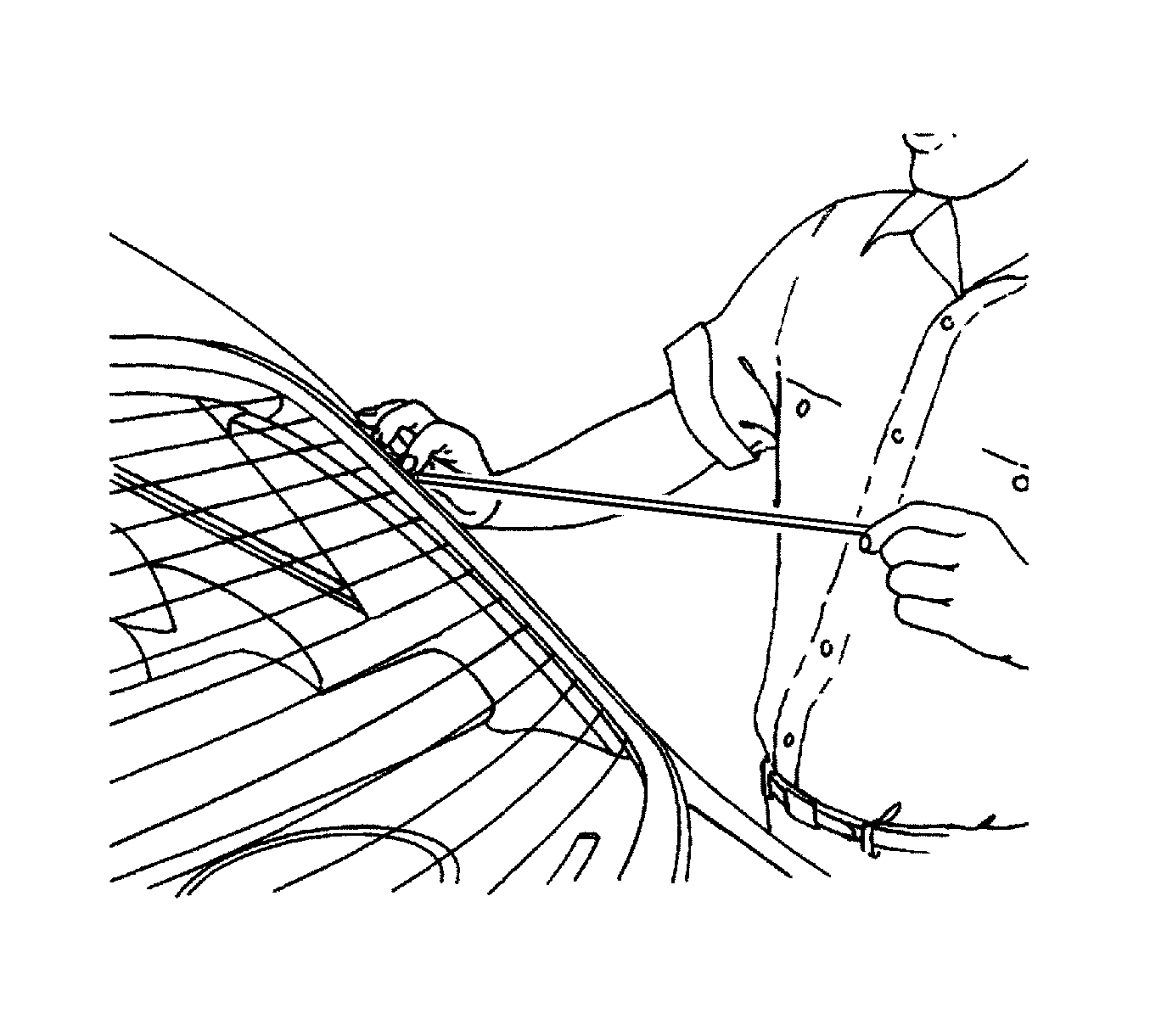

    3. Fig 2: Removal of Weatherstrip Around Rear Window
    GM1248258Courtesy of GENERAL MOTORS CORP.
  3. Remove the weatherstrip around the rear window.

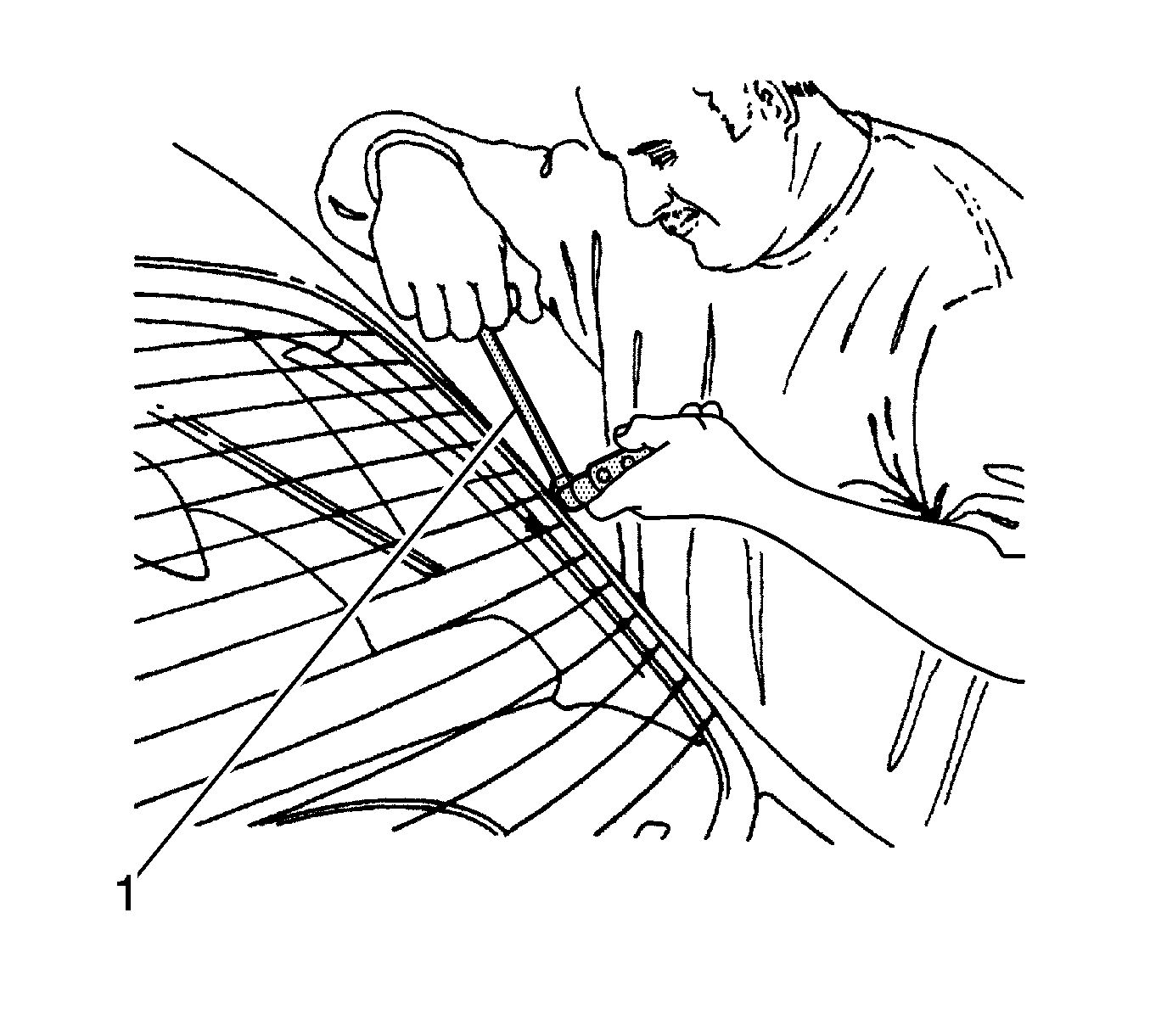

    4. Fig 3: Cutting Adhesive Around Rear Window with J 24402-A
    GM1248259Courtesy of GENERAL MOTORS CORP.
  4. Using the J 24402-A (1), cut the adhesive around the rear window.

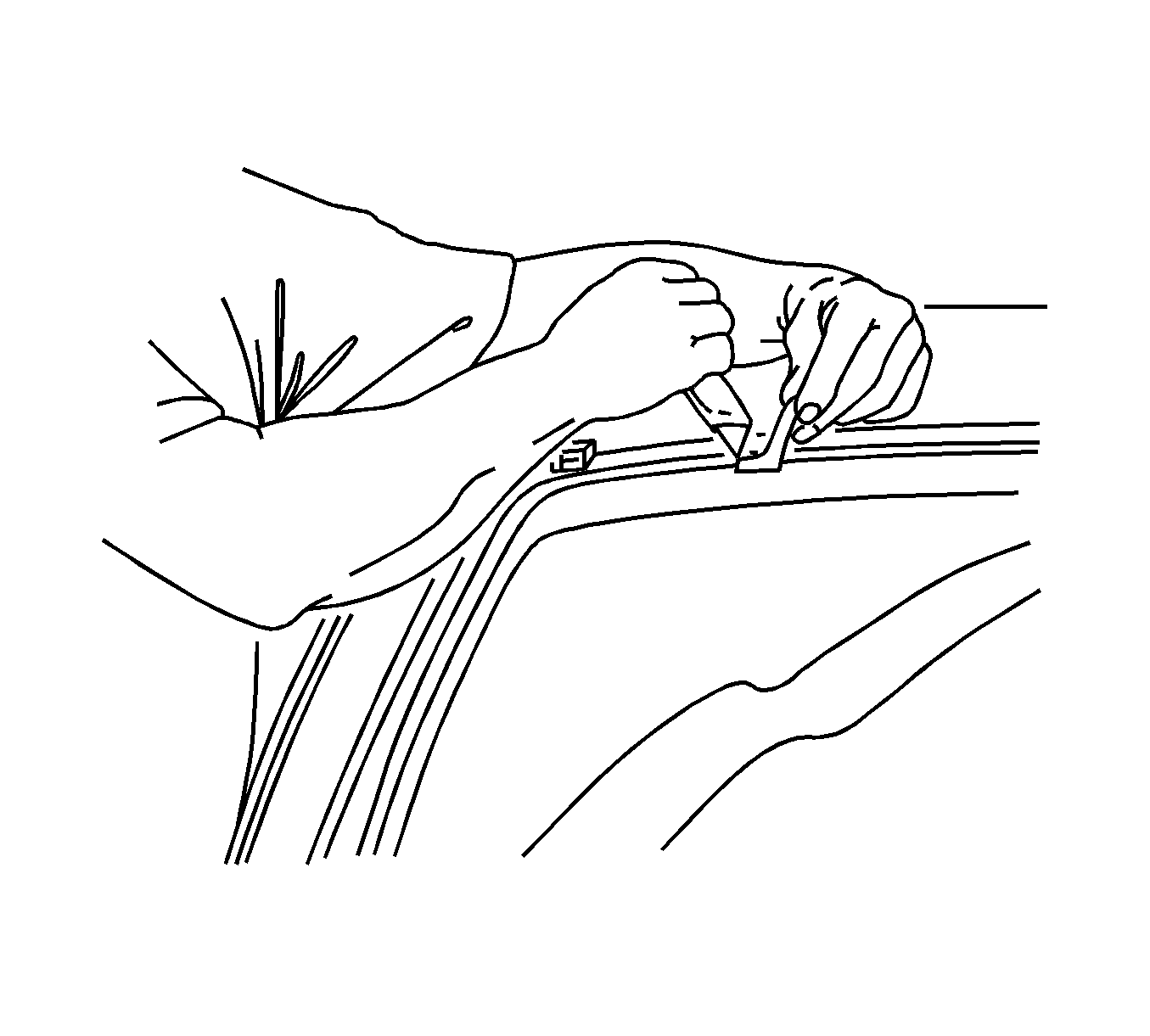

    5. Fig 4: Removal of Adhesive From Rear Window and Rear Window Frame with Knife
    GM1248260Courtesy of GENERAL MOTORS CORP.
  5. Remove the rear window from the vehicle.
  6. Using a knife, remove the adhesive from the rear window.
  7. Using a knife, remove the adhesive from the rear window frame.
