Stationary Windows Connectors

Defog Relay

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		AK 36905 9-Way Relay F
Pin	Wire Color	Circuit No.	Function
86	D-BU	193	Rear Defog Relay Control (w/o A/C)
86	D-BU	193	Rear Defog Relay Control (w/A/C)
85	BK	450	Ground
87	PU	293	Rear Defog Element Supply Voltage
30	OG/D-GN	1142	Battery Positive Voltage

Defogger Switch (w/o A/C)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		KET MG 651050 8-Way F 090-II Series (WH)
Pin	Wire Color	Circuit No.	Function
1	-	-	Not Used
2	BK	450	Ground
3-4	-	-	Not Used
5	YE	343	Accessory Voltage
6	D-BU	193	Rear Defog Relay Control
7	L-GN/RD	230	Instrument Panel Lamps Dimming Control
8	BN/WH	309	Right Park Lamp Supply Voltage

Rear Window Defogger (Ground)

Courtesy of GENERAL MOTORS CORP.

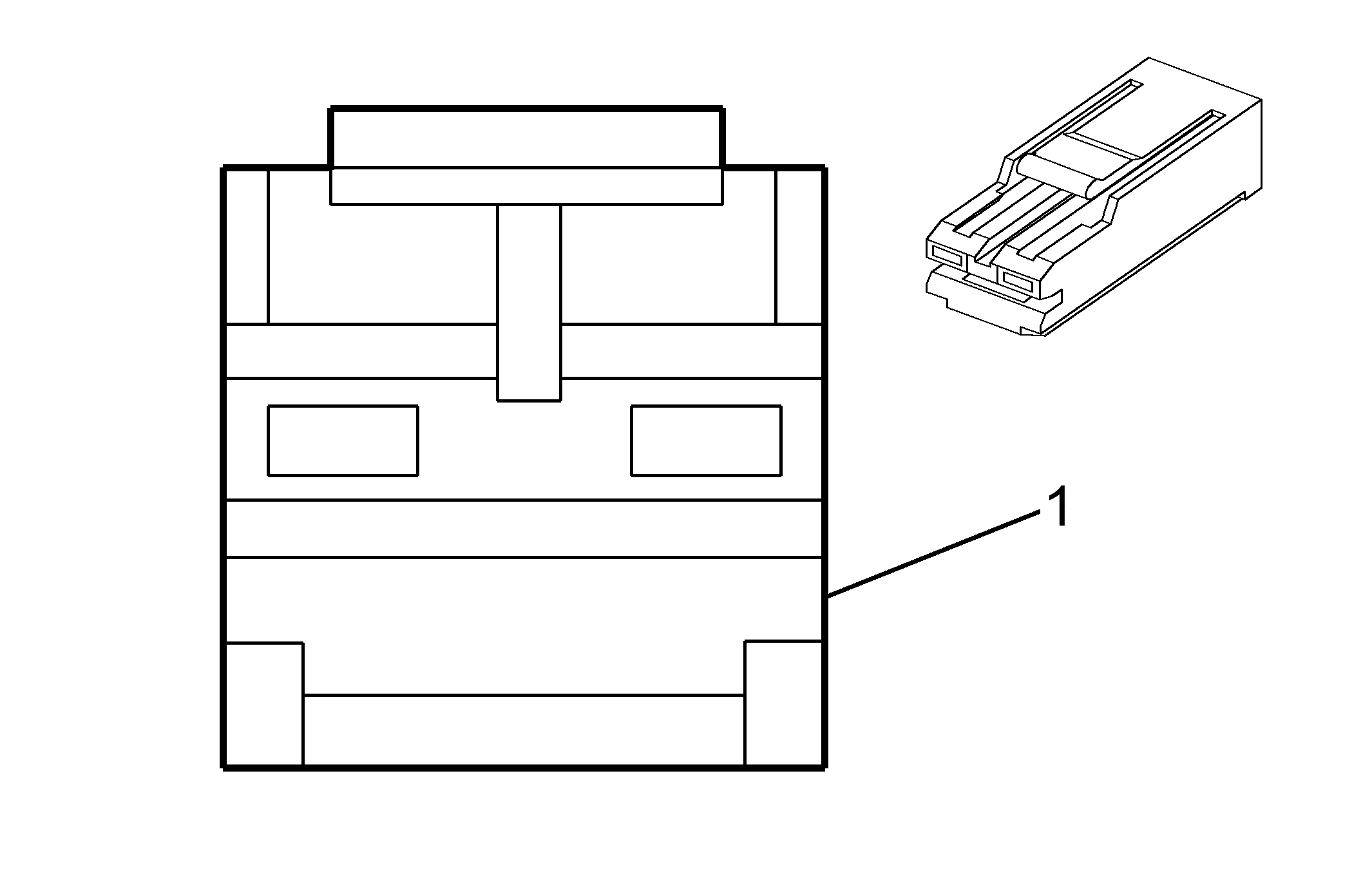

Connector Part Information		KET MG 630063 1-Way 250 Series (BK)
Pin	Wire Color	Circuit No.	Function
A	BK	850	Ground

Rear Window Defogger (Positive)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		KET MG 630063 1-Way 250 Series (BK)
Pin	Wire Color	Circuit No.	Function
A	PU	293	Rear Defog Element Supply Voltage
