Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

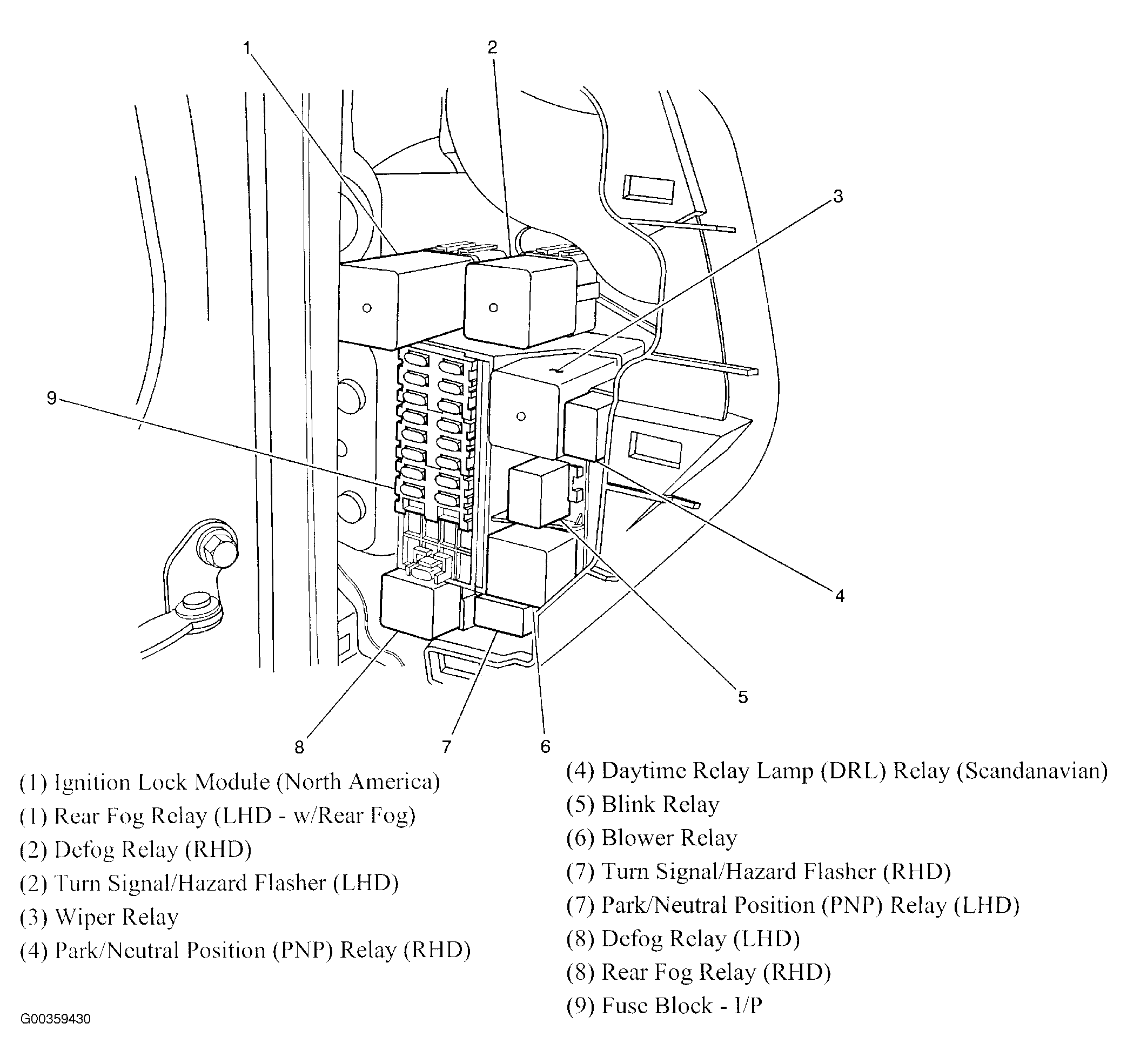

Passenger Compartment Fuse Block Behind left side of dash. See Figure.

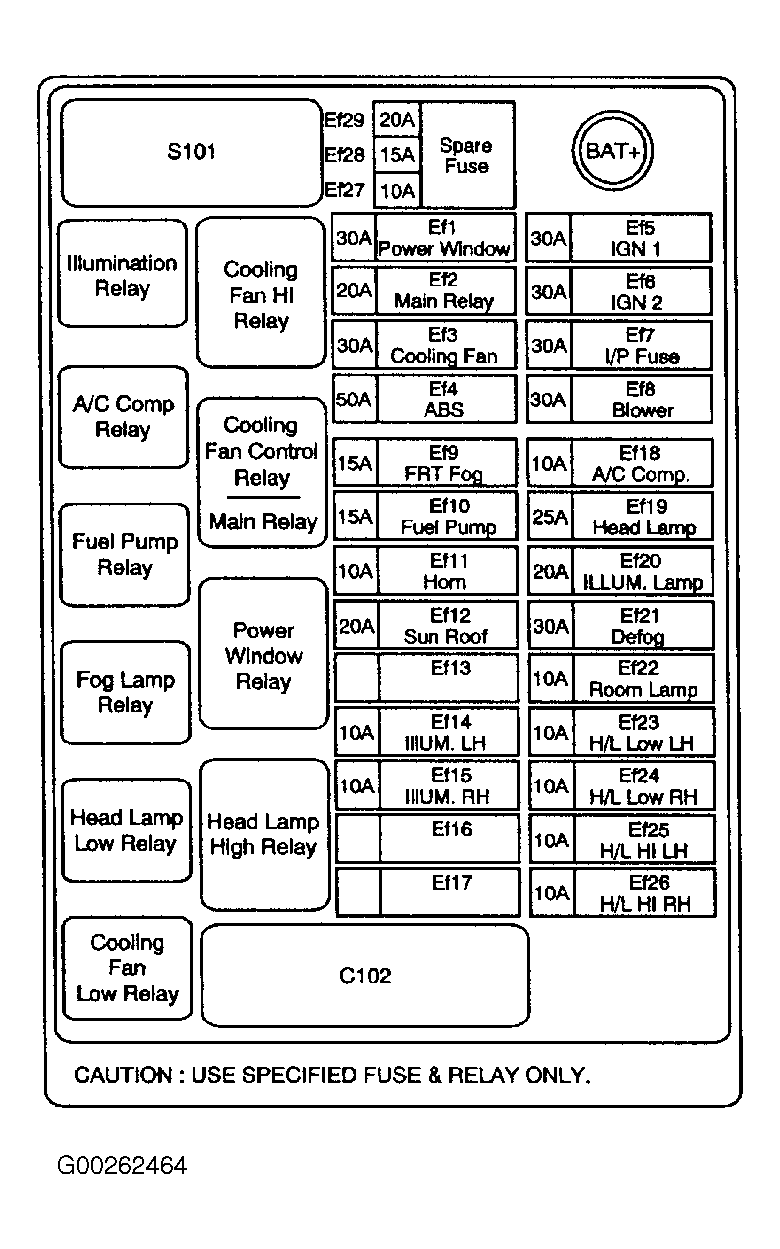

Underhood Fuse Block Left side of engine compartment. See Figure.
