Transmission Control Module (TCM) Removal and Installation: Removal

  1. Disconnect the negative battery cable.
  2. Disconnect the wiring connectors.
  3. Remove the transmission control module (TCM) from the bracket.

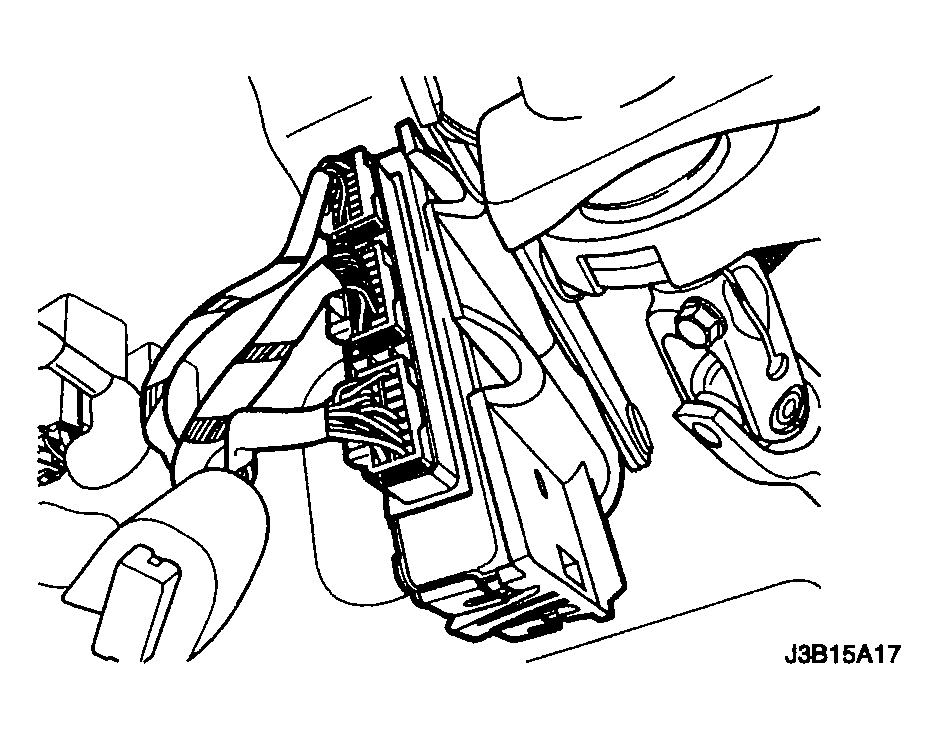

    Fig 1: Removing Transmission Control Module (TCM) From Bracket
    G04103532Courtesy of SUZUKI OF AMERICA CORP.
