DTC P0404 Exhaust Gas Recirculation Open Valve Position Error: Notes

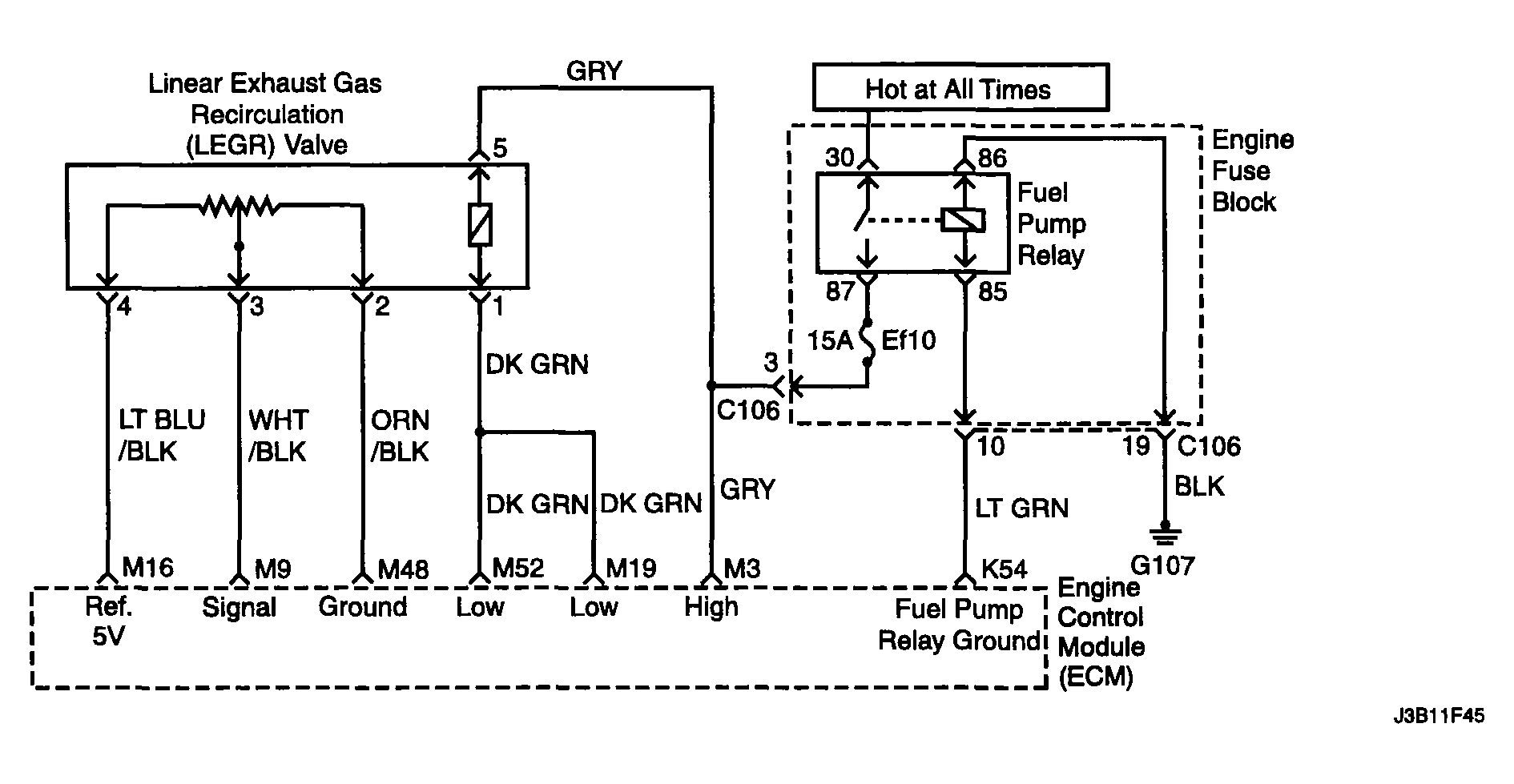

Fig 1: Exhaust Gas Recirculation Open Valve Position Error - Circuit Diagram

G04102554

Courtesy of SUZUKI OF AMERICA CORP.
