DTC P0402 Exhaust Gas Recirculation Excessive Flow: Notes

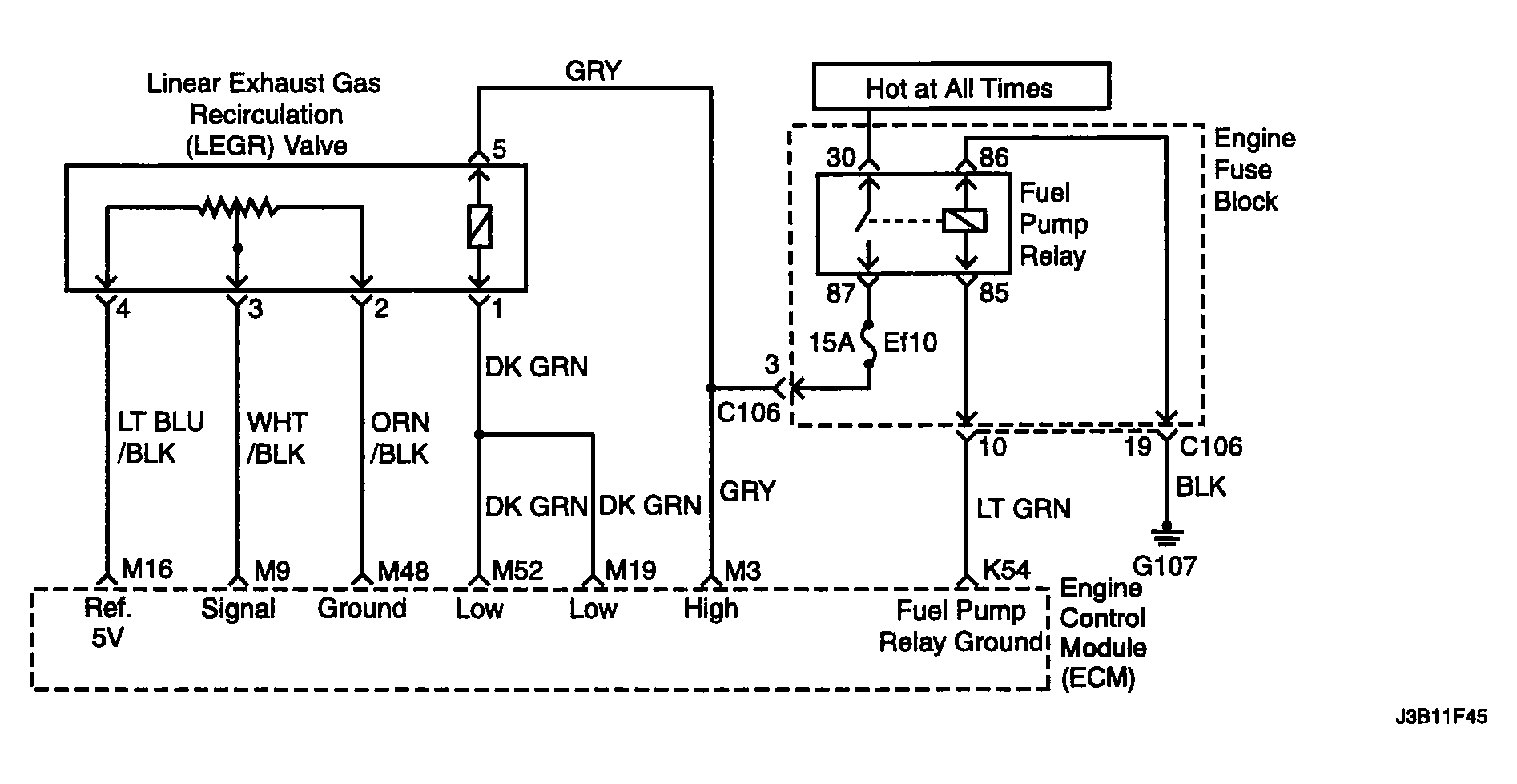

Fig 1: Exhaust Gas Recirculation Excessive Flow - Circuit Diagram

G04102553

Courtesy of SUZUKI OF AMERICA CORP.
