DTC P0141 Oxygen Sensor 2 (O2S2) Heater Circuit Not Functioning: Notes

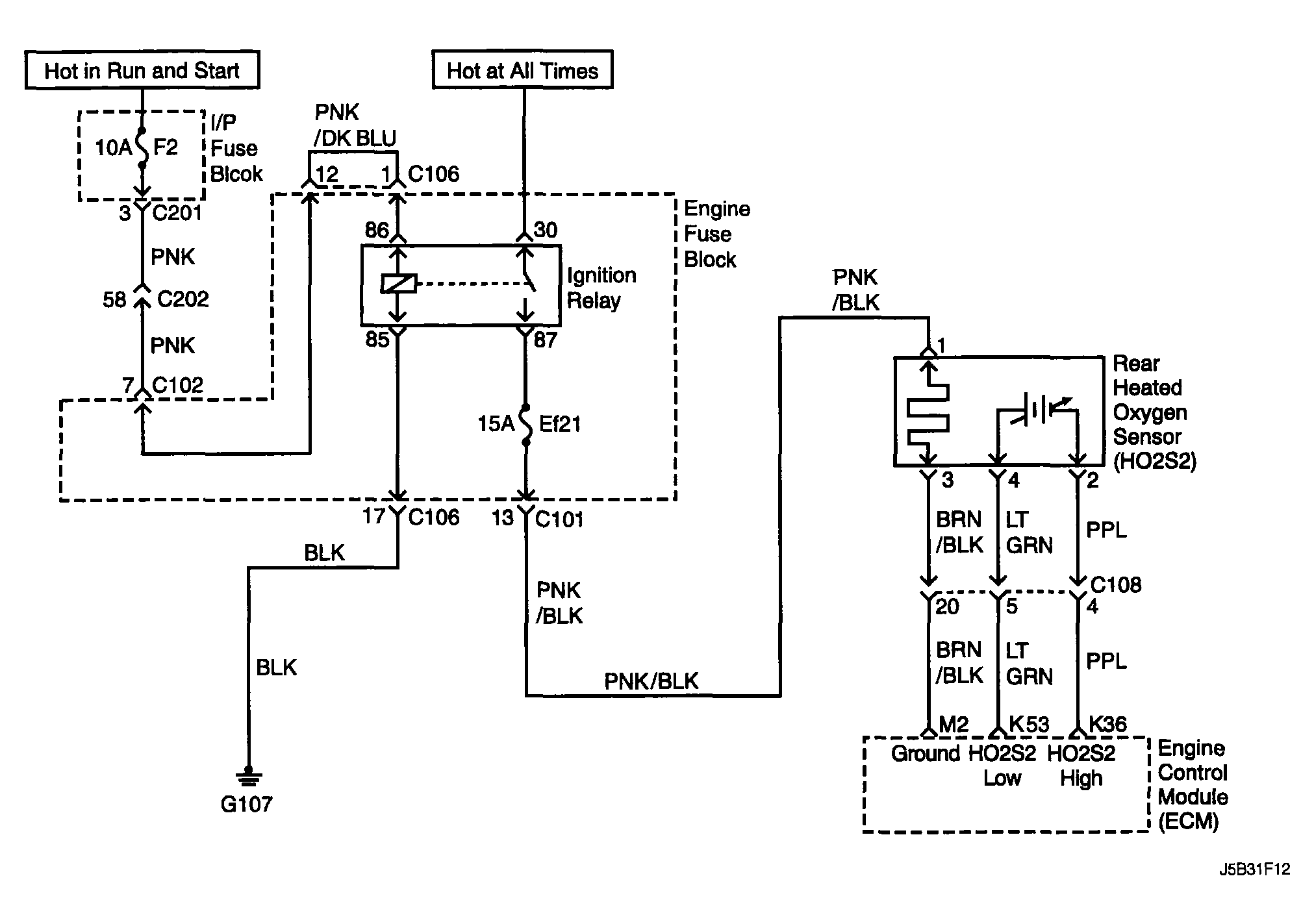

Fig 1: Oxygen Sensor 2 (O2S2) Heater Circuit Not Functioning - Circuit Diagram

G04102538

Courtesy of SUZUKI OF AMERICA CORP.
