DTC P0135 Oxygen Sensor 1 (O2S1) Heater Circuit Not Functioning: Notes

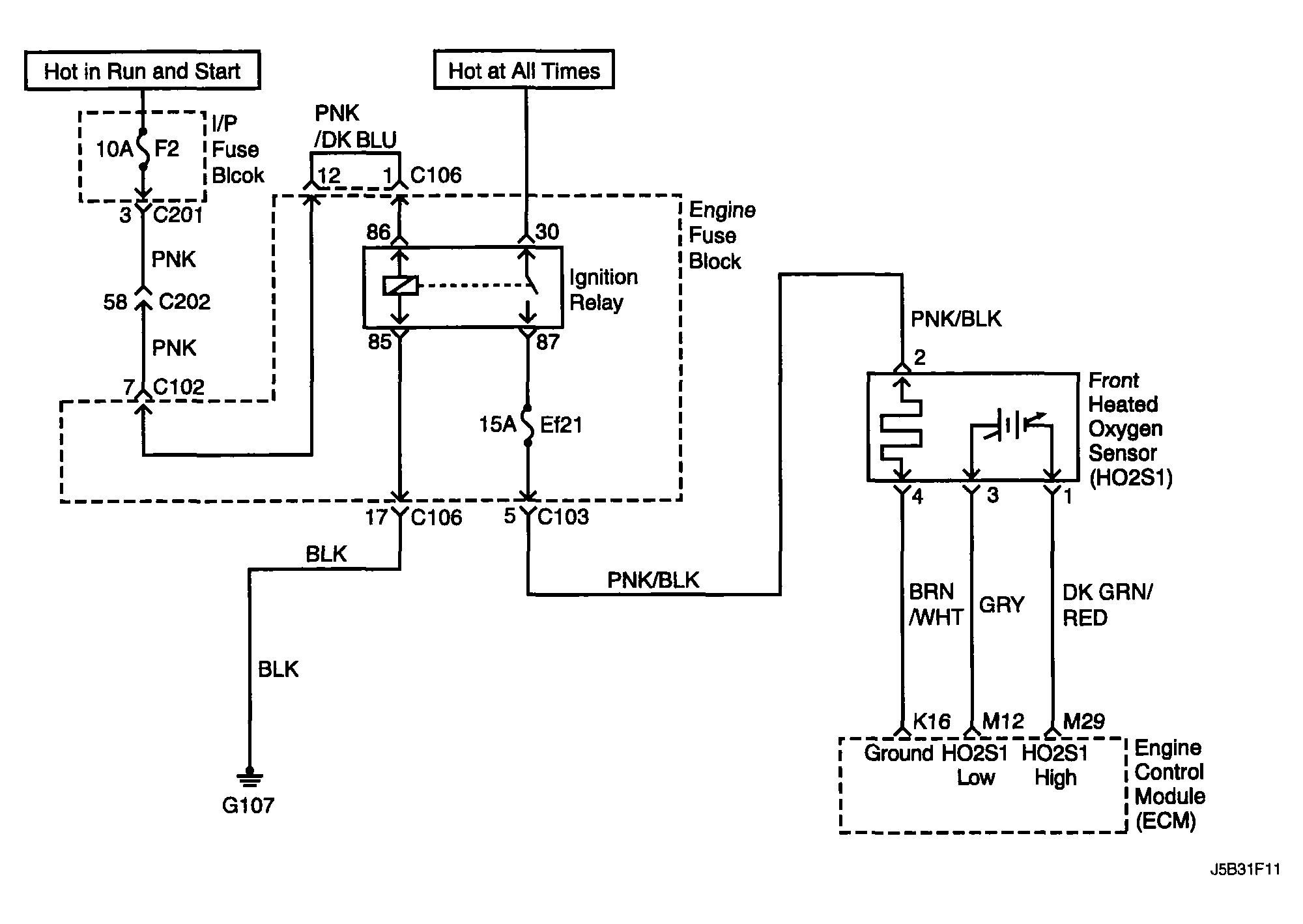

Fig 1: Oxygen Sensor 1 (O2S1) Heater Circuit Not Functioning - Circuit Diagram

G04102534

Courtesy of SUZUKI OF AMERICA CORP.
