Power Window Sub Switch Inspection

Inspect switch continuity between terminal.

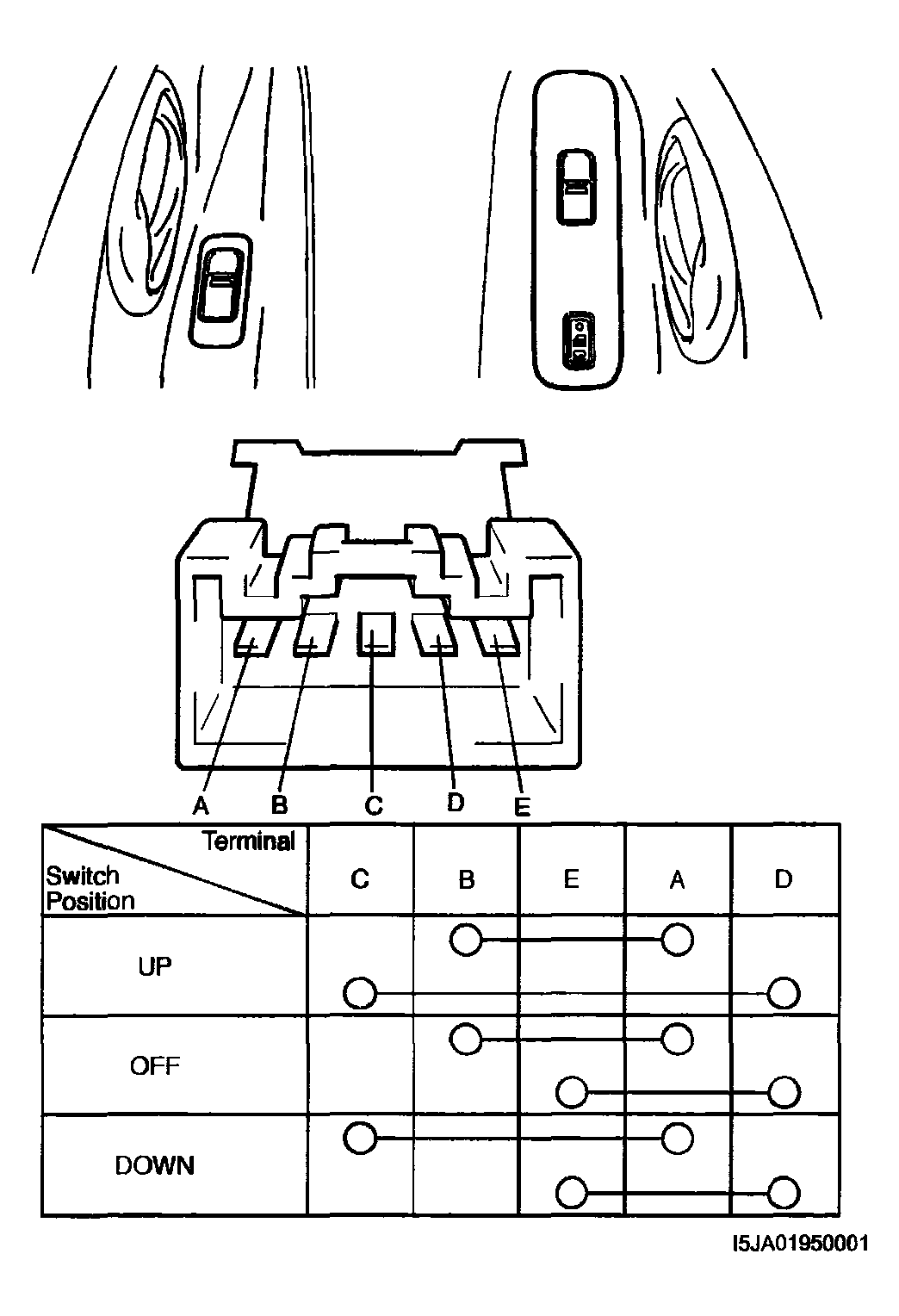

Fig 1: Inspecting Switch Continuity Between Terminal

G04101432

Courtesy of SUZUKI OF AMERICA CORP.
