Power Window Main Switch Inspection

Inspect switch continuity between terminals.

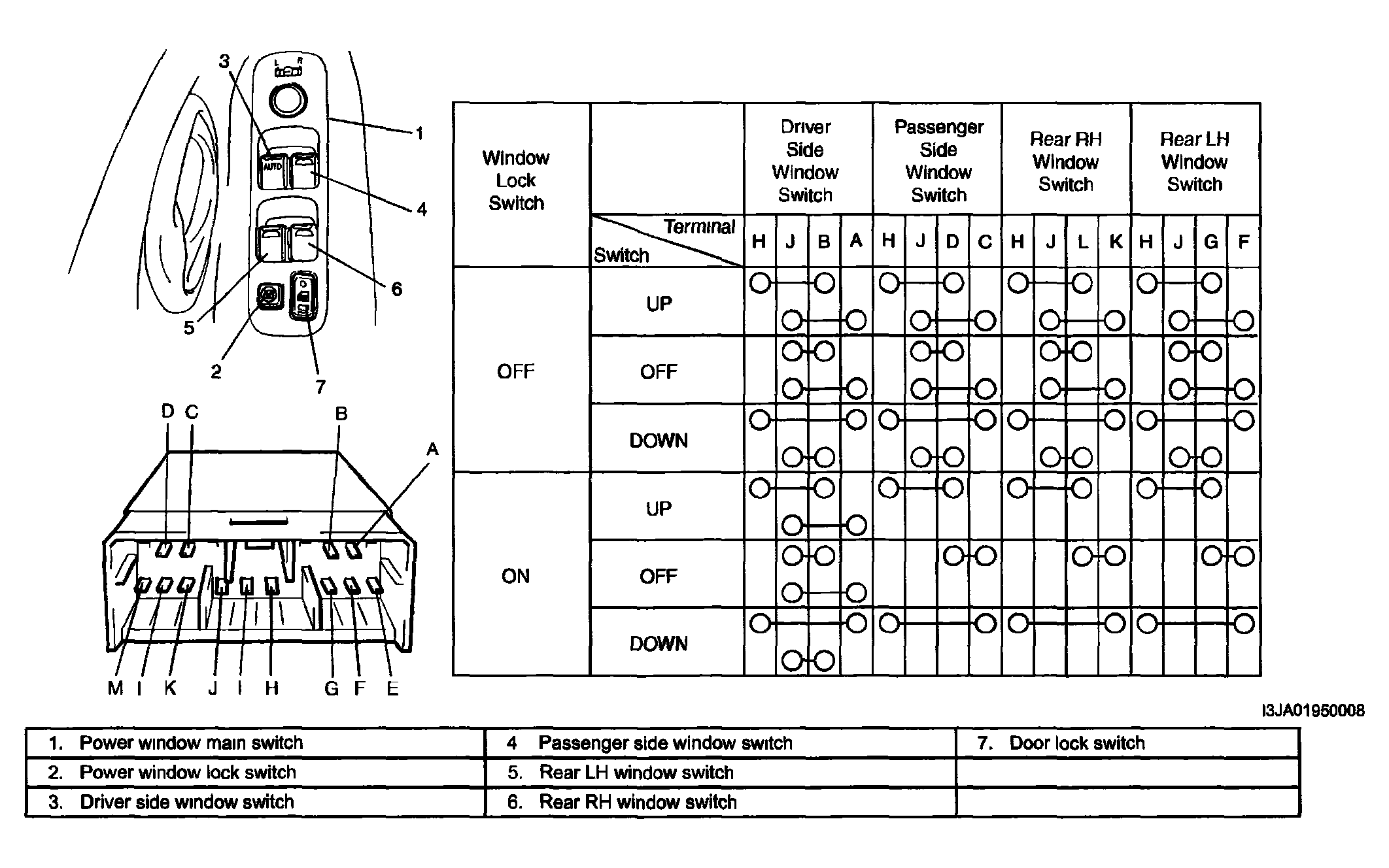

Fig 1: Inspecting Switch Continuity Between Terminals

G04101431

Courtesy of SUZUKI OF AMERICA CORP.
