Home >> Suzuki >> 2005 >> Forenza EX, 4D Sedan >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission >> Diagnostic Information and Procedures >> DTC P0601 Internal Control Module Memory Checksum Error >> Notes

DTC P0601 Internal Control Module Memory Checksum Error: Notes

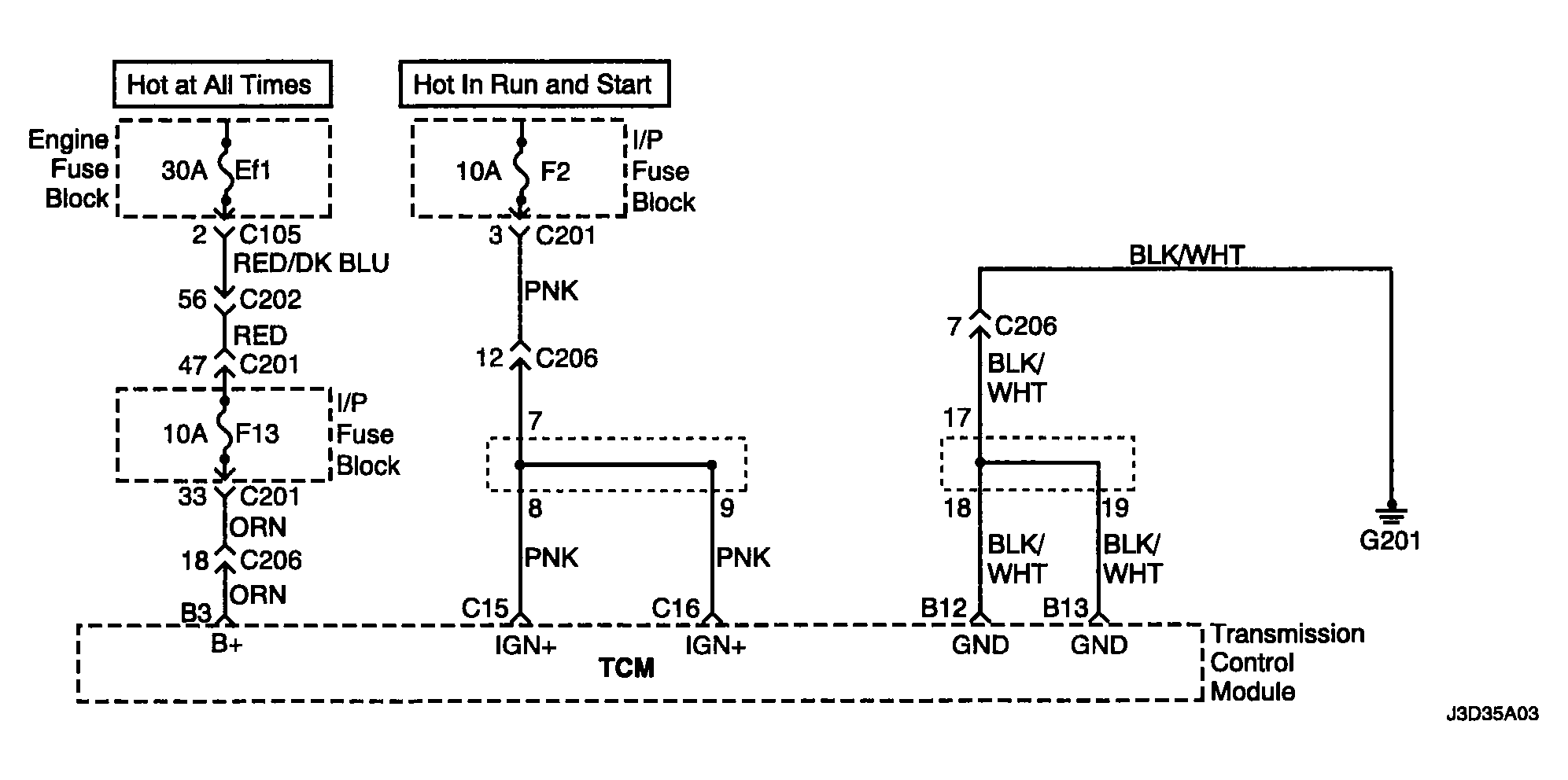

Fig 1: DTC P0601 Internal Control Module Memory Checksum Error Circuit

G04103457

Courtesy of SUZUKI OF AMERICA CORP.
