Output Shaft Speed Sensor Inspection

  1. Disconnect negative cable at battery.
  2. Disconnect output shaft speed sensor connector (2).
  3. Check resistance between output shaft speed sensor (1) terminals. If check result is not as specified, replace sensor.

    Output shaft speed sensor resistance

    Standard: 344 - 516 Ω at 20°C (68°F)

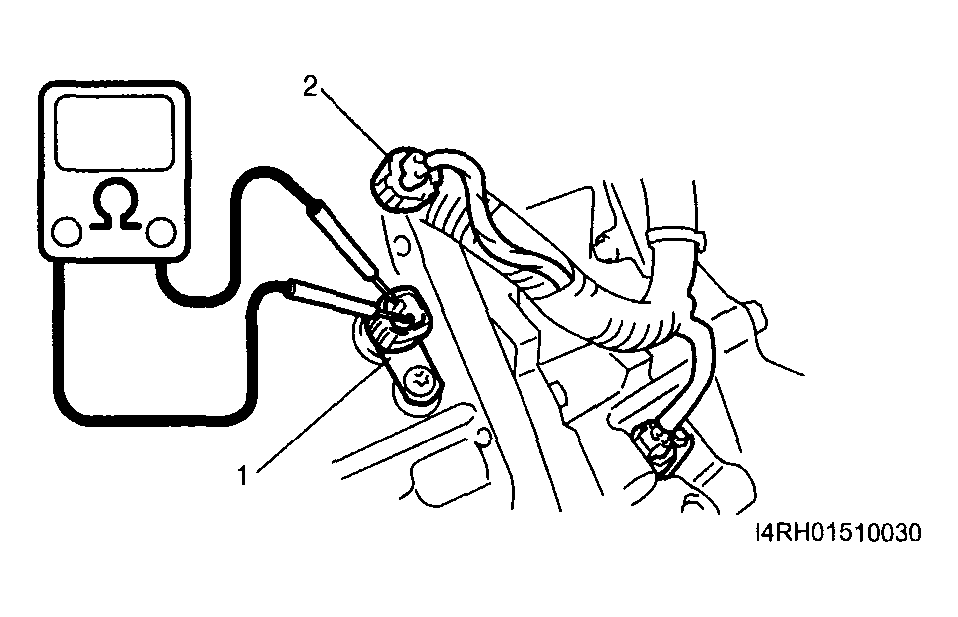

    Fig 1: Checking Resistance Between Output Shaft Speed Sensor Terminals
    G04015006Courtesy of SUZUKI OF AMERICA CORP.
