Front Stabilizer Bar and/or Bushings Components

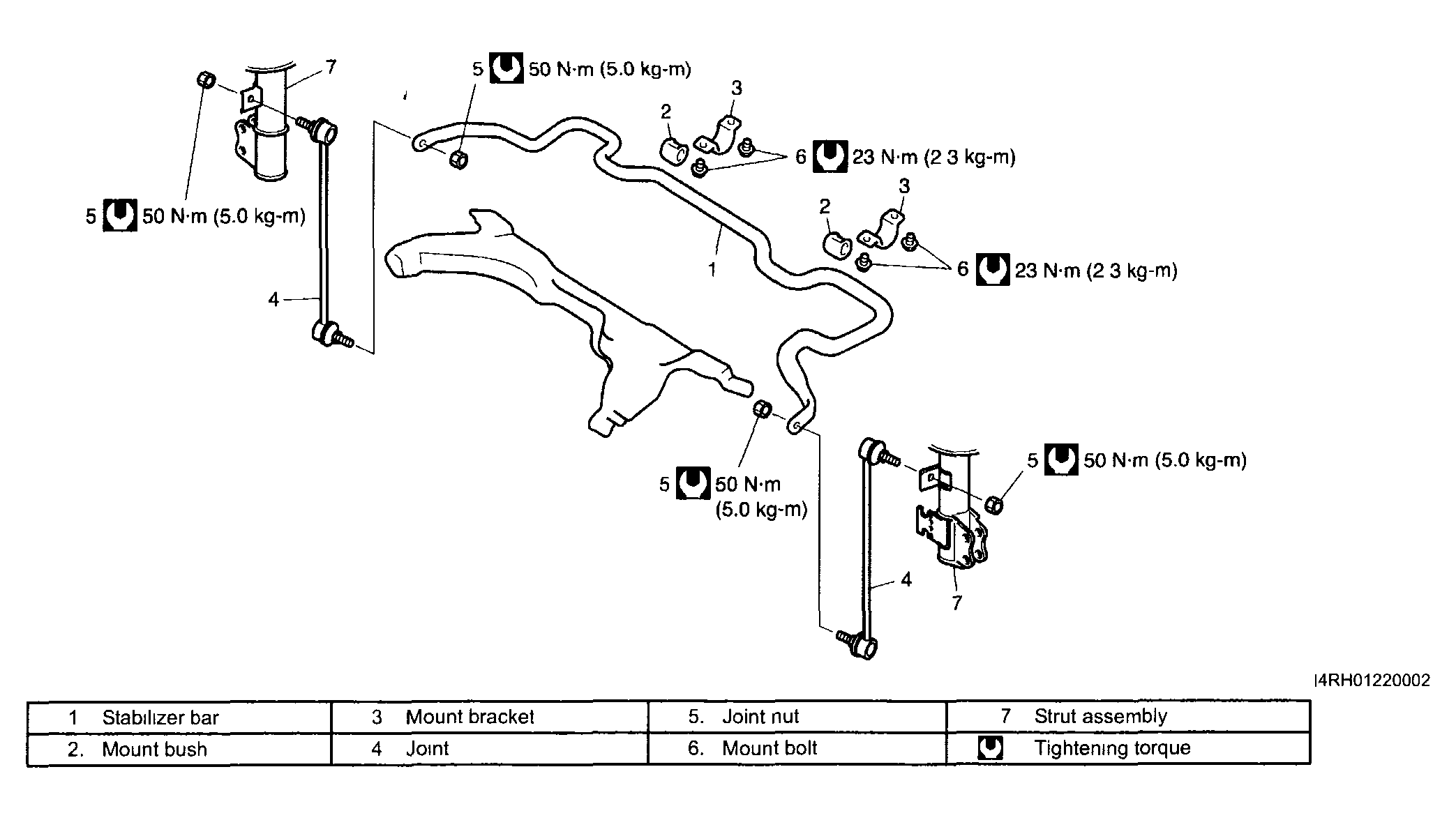

Fig 1: Exploded View Of Front Stabilizer Bar And Bushings

G04014361

Courtesy of SUZUKI OF AMERICA CORP.
