Front Door Lock Assembly Components

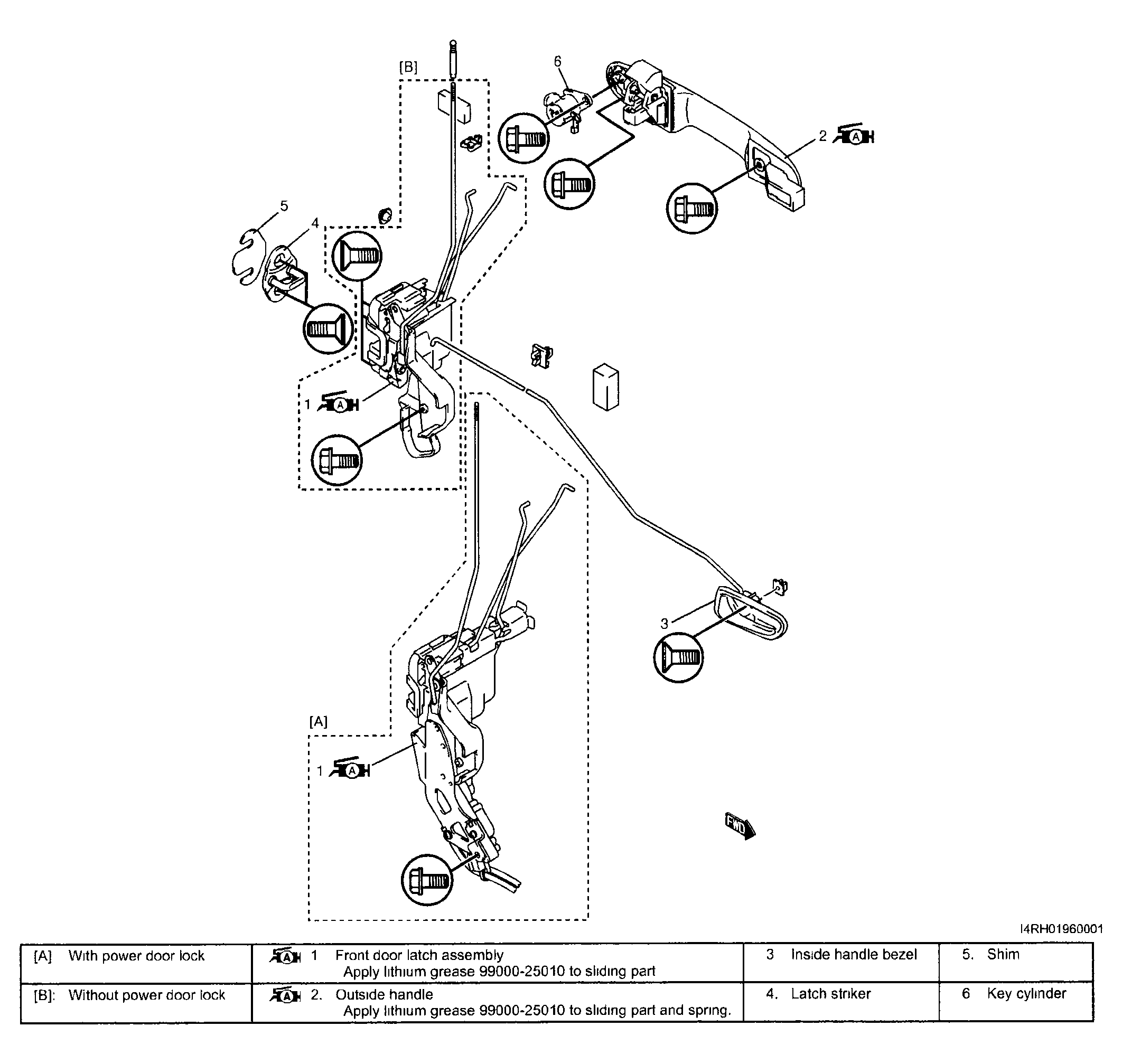

Fig 1: Identifying Front Door Lock Assembly Components

G04016204

Courtesy of SUZUKI OF AMERICA CORP.
