Manual Transaxle Unit Components
Manual Transaxle Unit Components

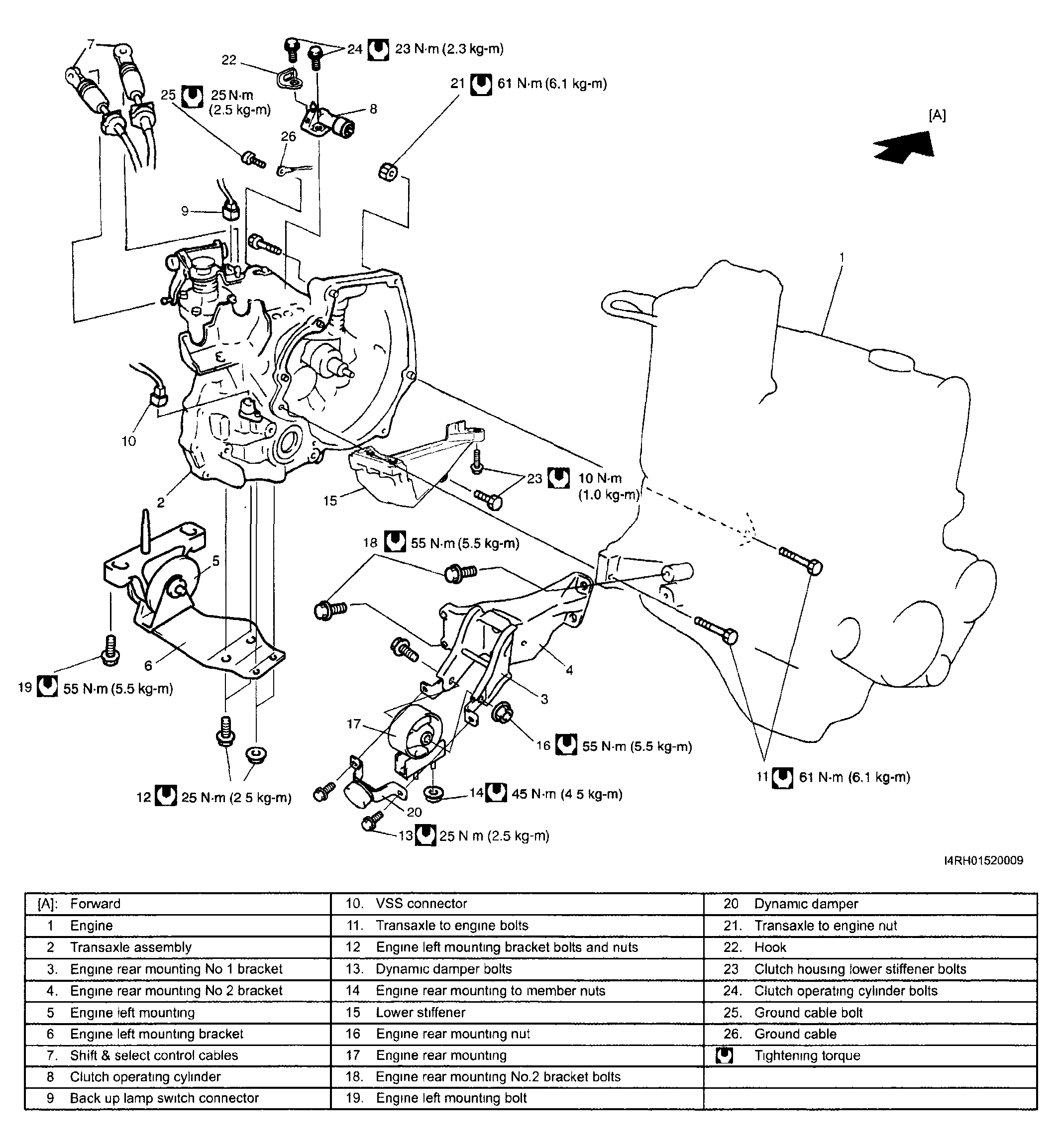

Fig 1: Manual Transaxle Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
