Manual Transaxle Assembly Components

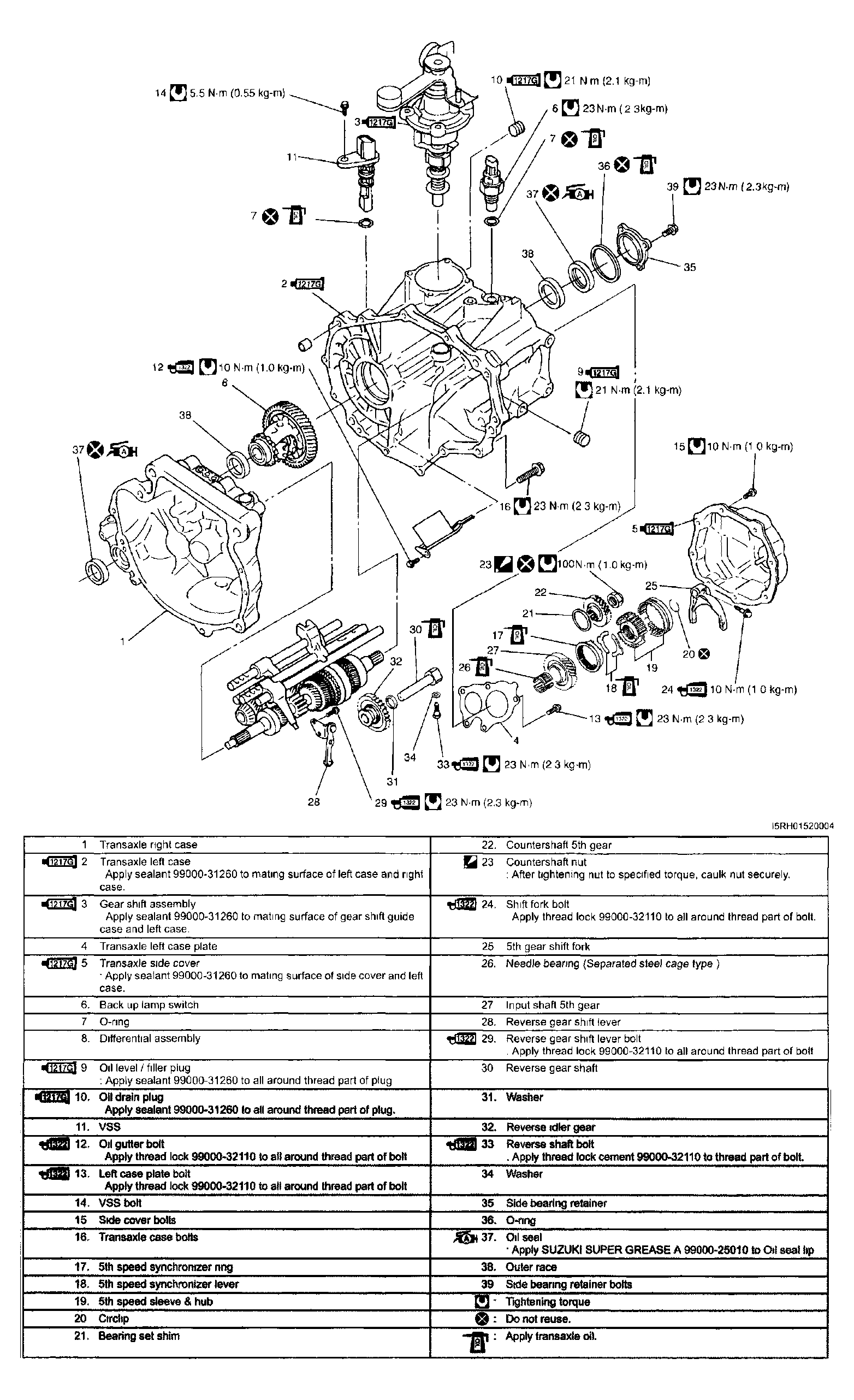

Fig 1: Identifying Manual Transaxle Assembly Components

G04015294

Courtesy of SUZUKI OF AMERICA CORP.
