Clutch Operating Cylinder Components

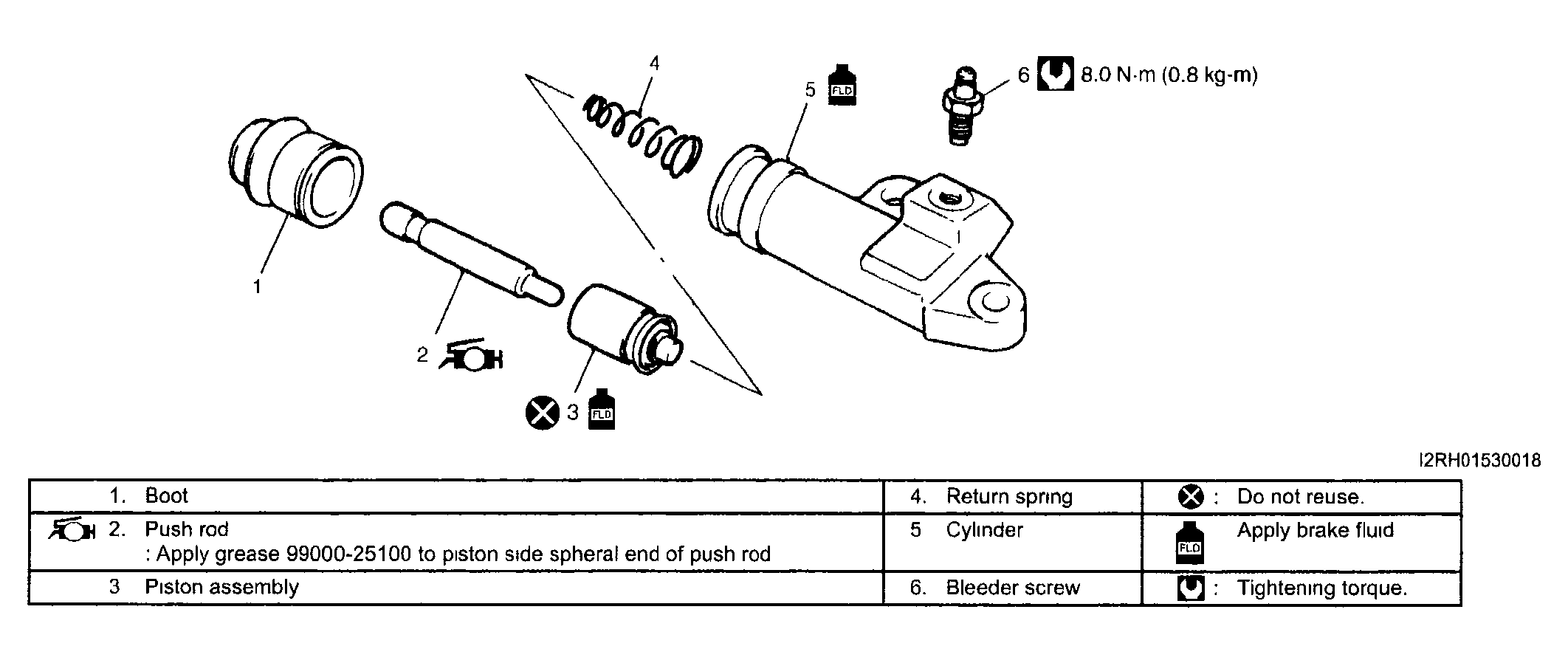

Fig 1: Identifying Clutch Operating Cylinder Components

G04015415

Courtesy of SUZUKI OF AMERICA CORP.
