Control Rod Check

• Inspect for cracks, deformation or damage.
• Inspect bushing for wear and breakage.

If any faulty condition is found, replace.

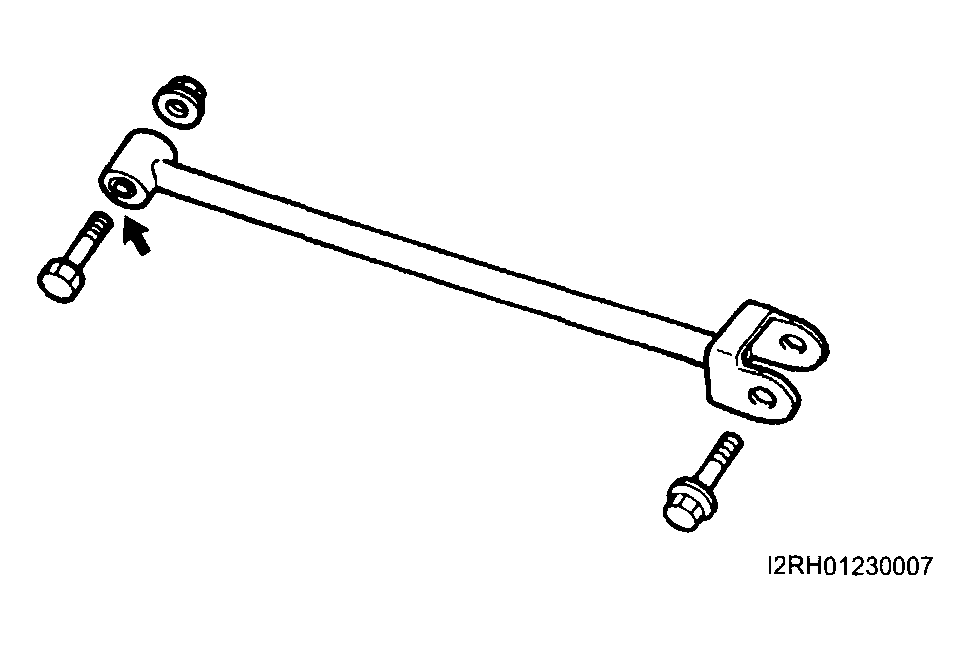

Fig 1: Checking Control Rod

Courtesy of SUZUKI OF AMERICA CORP.
