Fuel Pressure Regulator Removal and Installation: Installation

For installation, reverse removal procedure and note the following precautions.

• Use new O-ring (1).
• Apply thin coat of gasoline to O-ring (1) to facilitate installation.

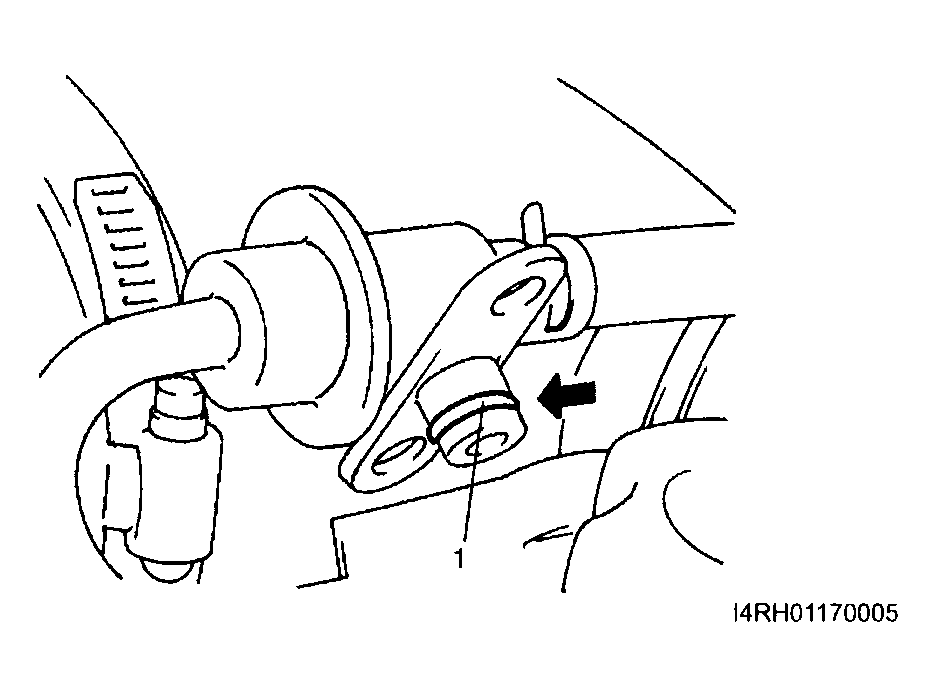

  Fig 1: Installing New O-Ring

  Courtesy of SUZUKI OF AMERICA CORP.
• Tighten fuel pressure regulator bolts (1) to specified torque.

  Tightening torque

  Fuel pressure regulator bolts (a): 11 N.m (1.1 kg-m, 8.0 lb-ft)

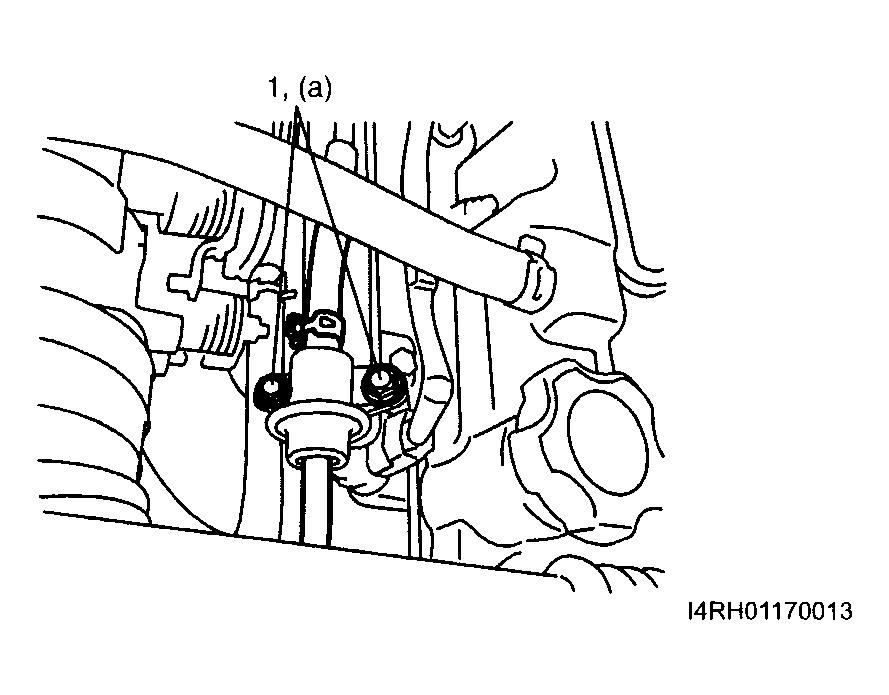

  Fig 2: Tightening Fuel Pressure Regulator Bolts

  Courtesy of SUZUKI OF AMERICA CORP.
• With engine "OFF" and ignition switch "ON", check for fuel leaks around fuel line connection.
