Radiator Fan Control System Check: Wiring Diagram

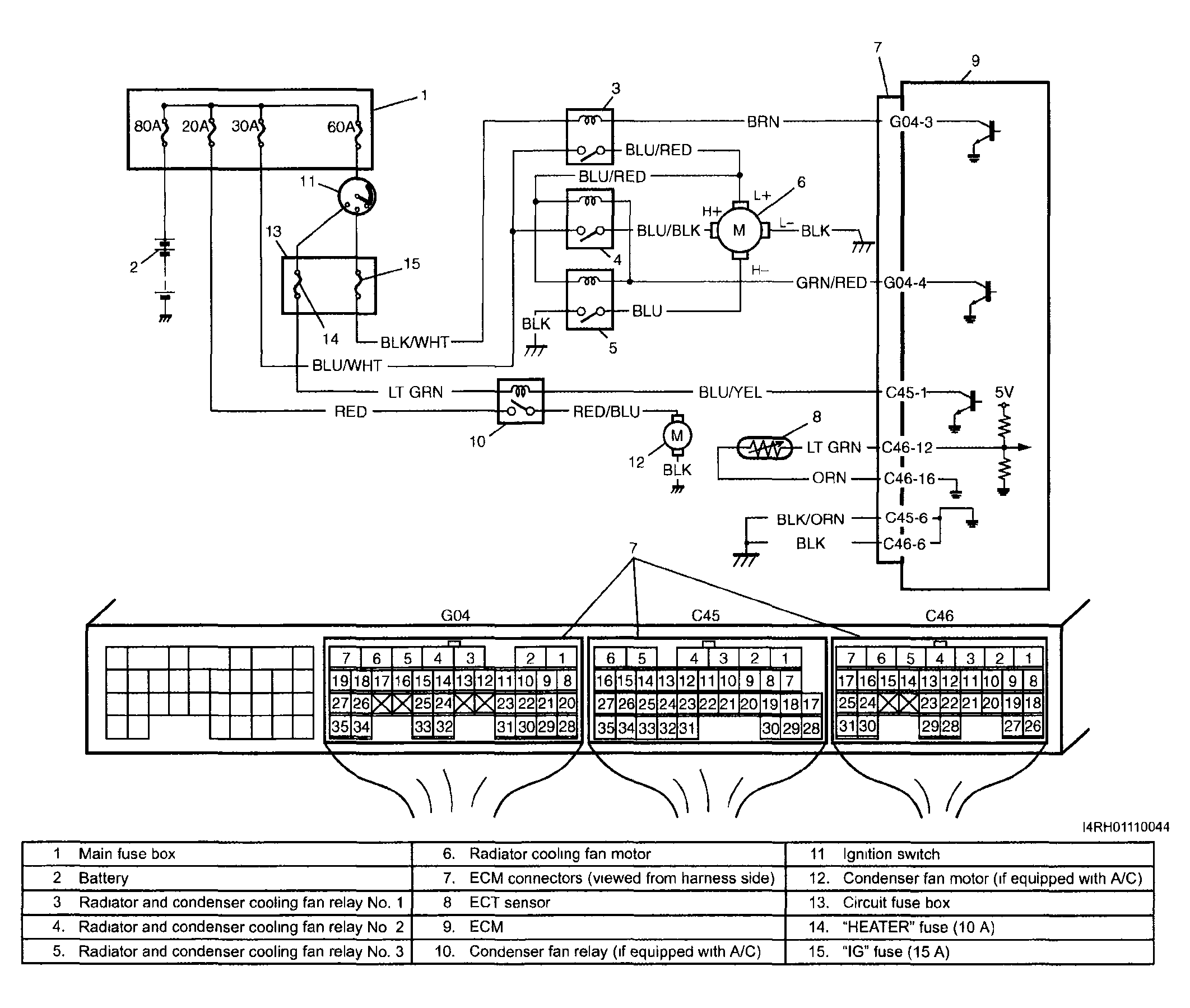

Fig 1: Radiator Fan Control - Wiring Diagram

G04013814

Courtesy of SUZUKI OF AMERICA CORP.
