Power Steering Pressure (PSP) Switch Signal Circuit Check
>>
Wiring Diagram
Power Steering Pressure (PSP) Switch Signal Circuit Check: Wiring Diagram

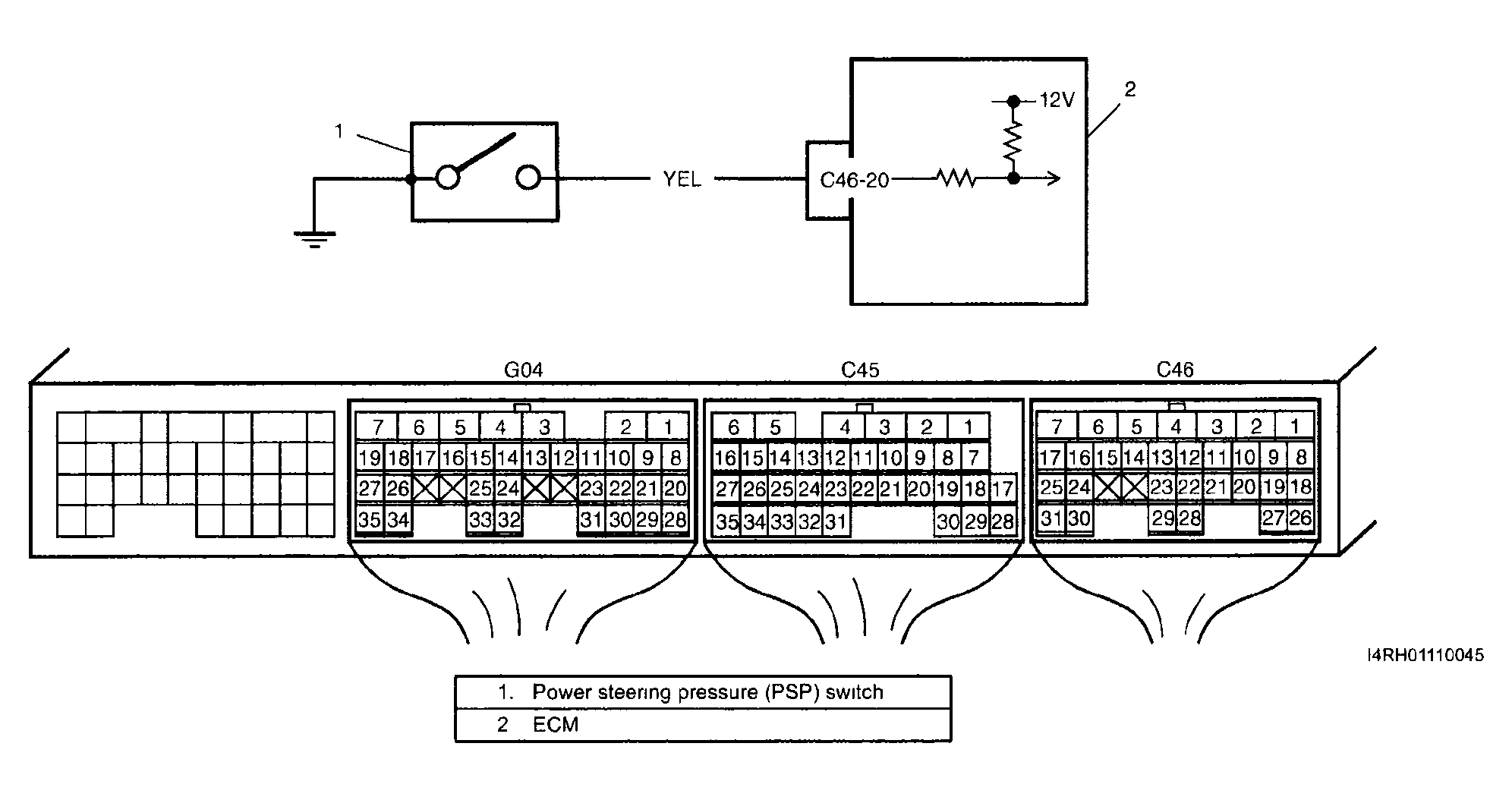

Fig 1: Power Steering Pressure Switch Signal Circuit - Wiring Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
