Engine and Emission Control Input / Output Table

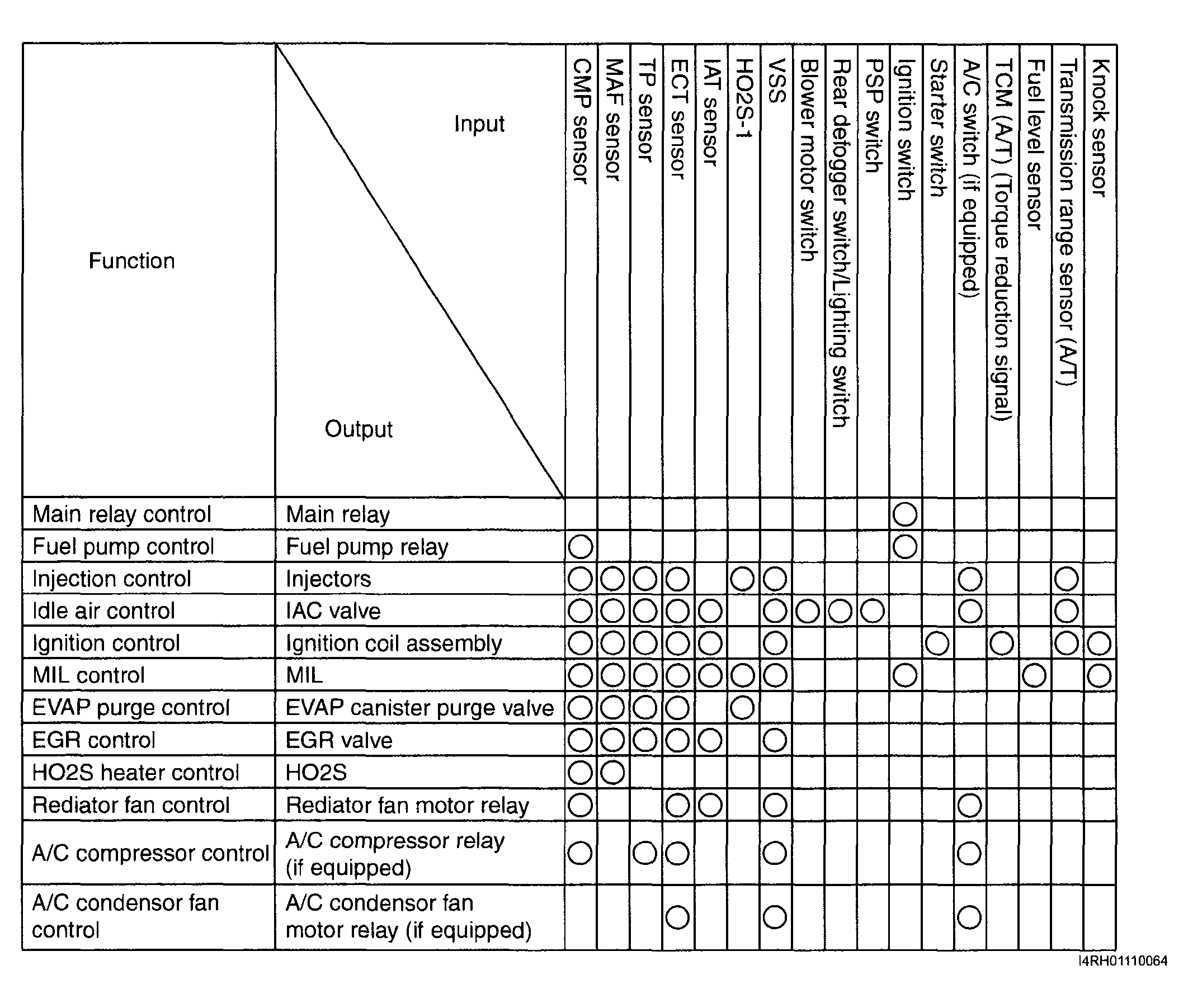

Fig 1: Engine And Emission Control Input/Output Table

G04013669

Courtesy of SUZUKI OF AMERICA CORP.
