Engine and Emission Control System Flow Diagram

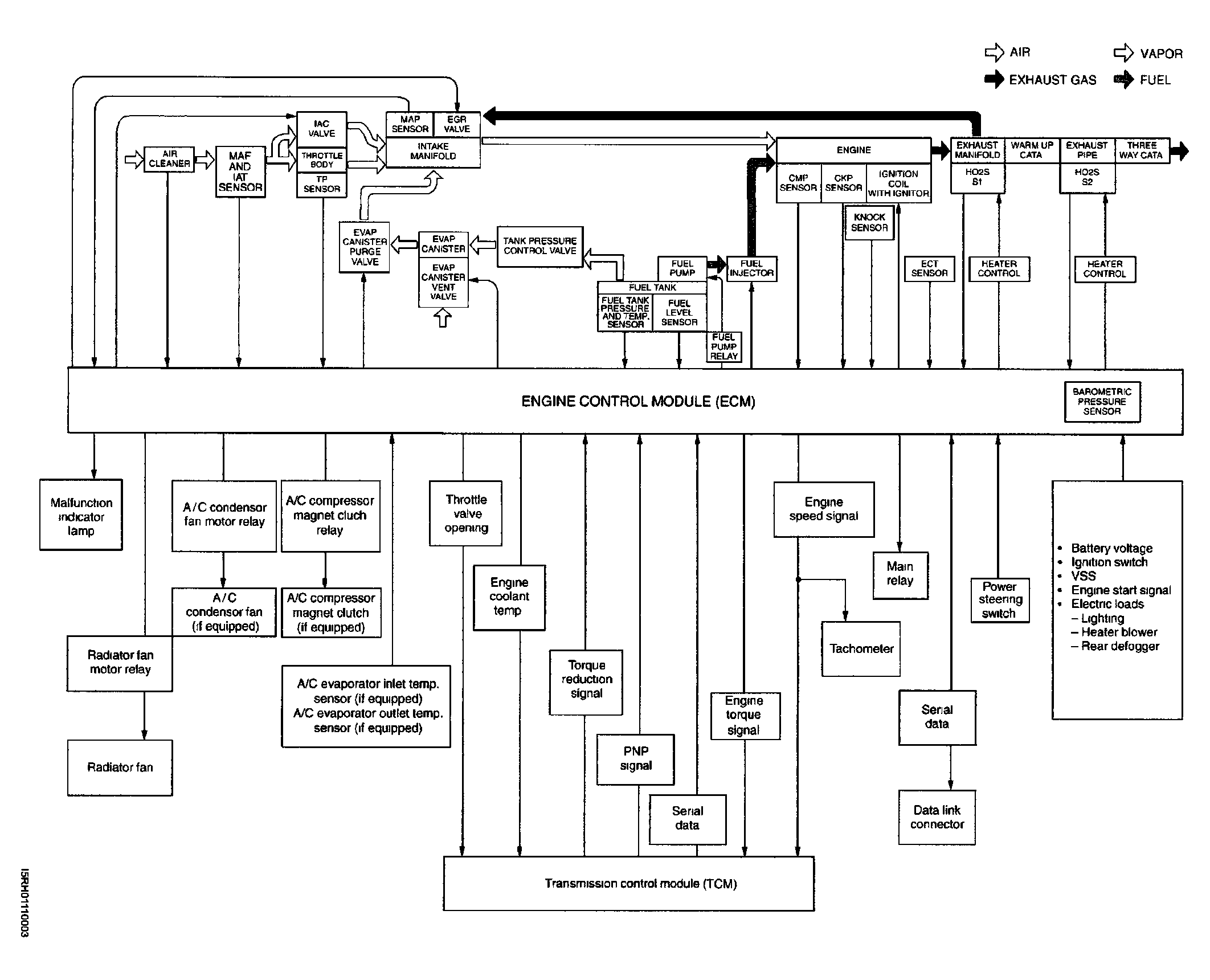

Fig 1: Engine And Emission Control System Flow Diagram

G04013666

Courtesy of SUZUKI OF AMERICA CORP.
