ECM Power and Ground Circuit Check: Wiring Diagram

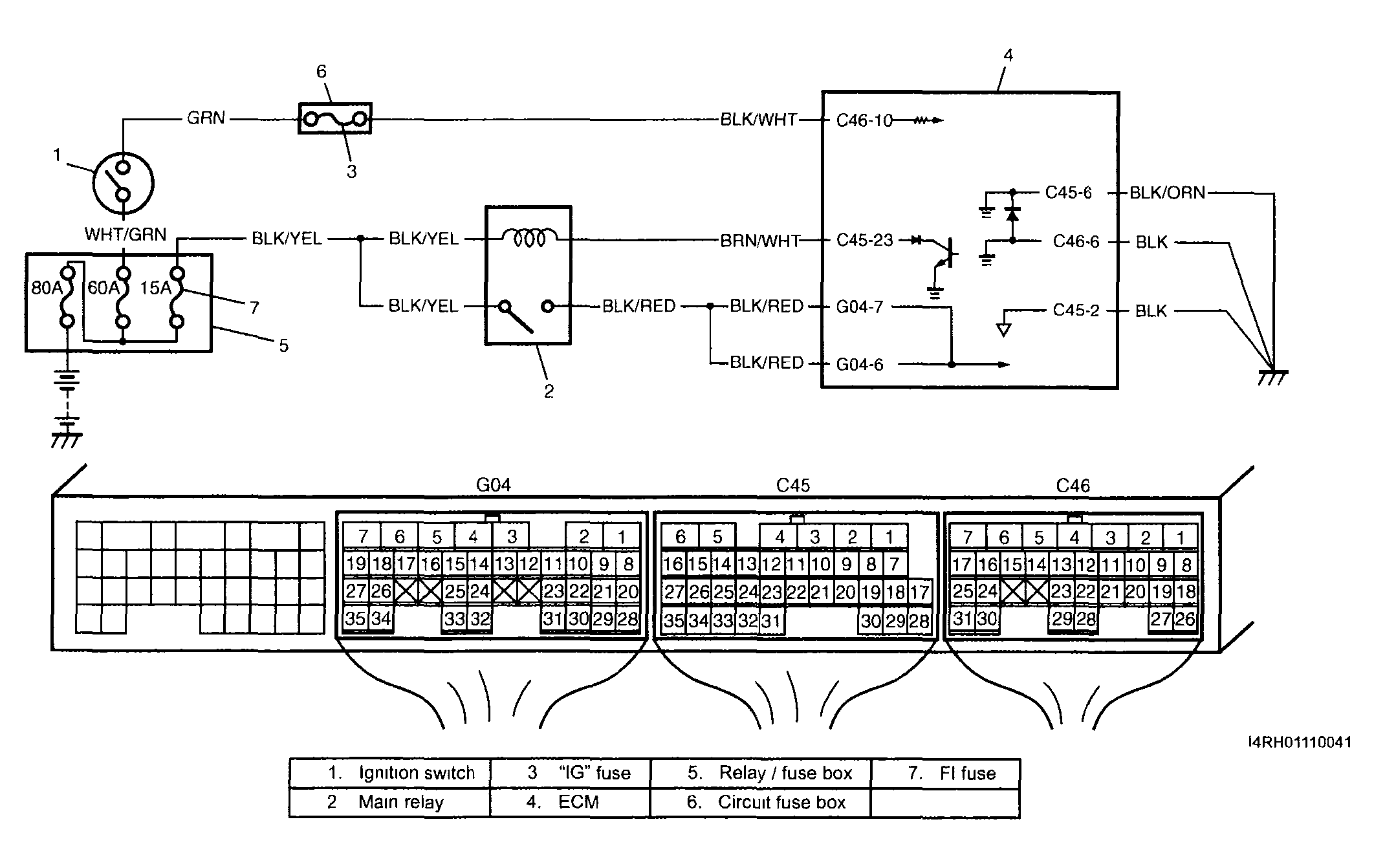

Fig 1: ECM Circuit - Wiring Diagram

G04013806

Courtesy of SUZUKI OF AMERICA CORP.
