DTC P0500: Vehicle Speed Sensor: Wiring Diagram

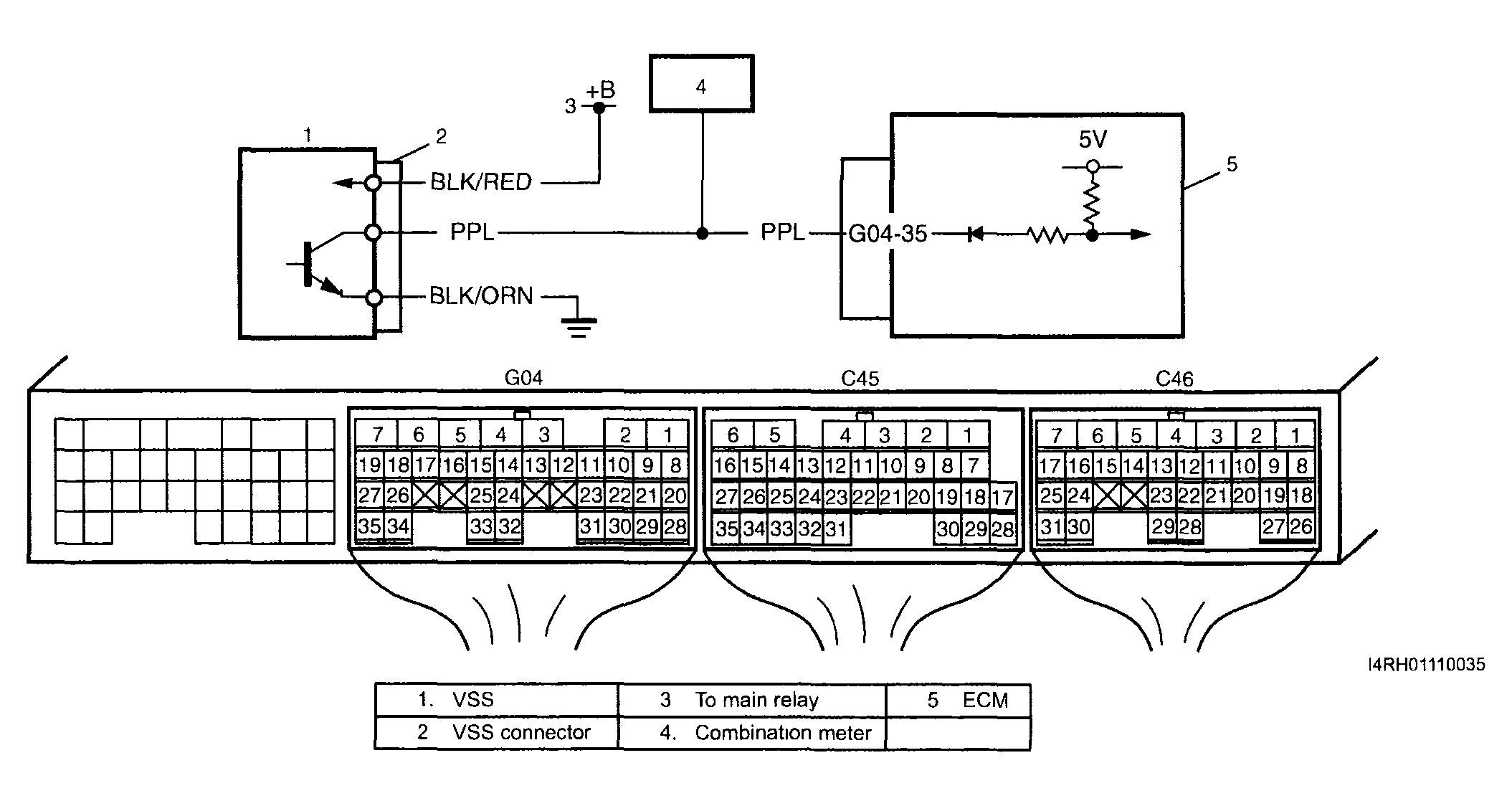

Fig 1: Vehicle Speed Sensor - Wiring Diagram (DTC P0500)

G04013750

Courtesy of SUZUKI OF AMERICA CORP.
