Home >> Suzuki >> 2005 >> Aerio S, Standard >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine General Information And Diagnosis >> DTC P0452: Evaporative Emission Control System Pressure Sensor Low Input >> Wiring Diagram

DTC P0452: Evaporative Emission Control System Pressure Sensor Low Input: Wiring Diagram

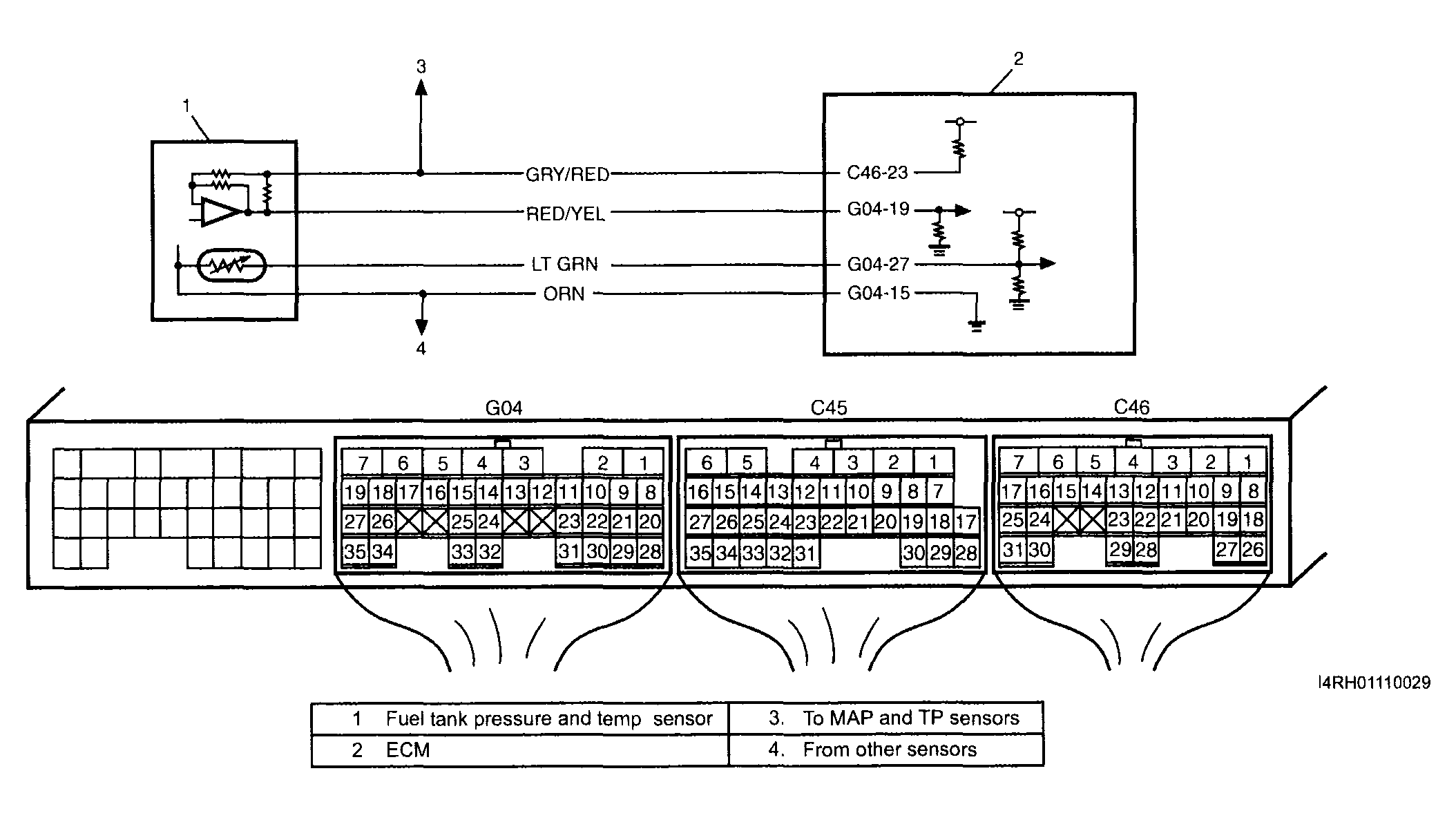

Fig 1: Evaporative Emission Control System Pressure Sensor Low Input - Wiring Diagram (DTC P0452)
G04013736Courtesy of SUZUKI OF AMERICA CORP.
