DTC P0135: 02 Sensor Heater Circuit (Sensor-1): Wiring Diagram

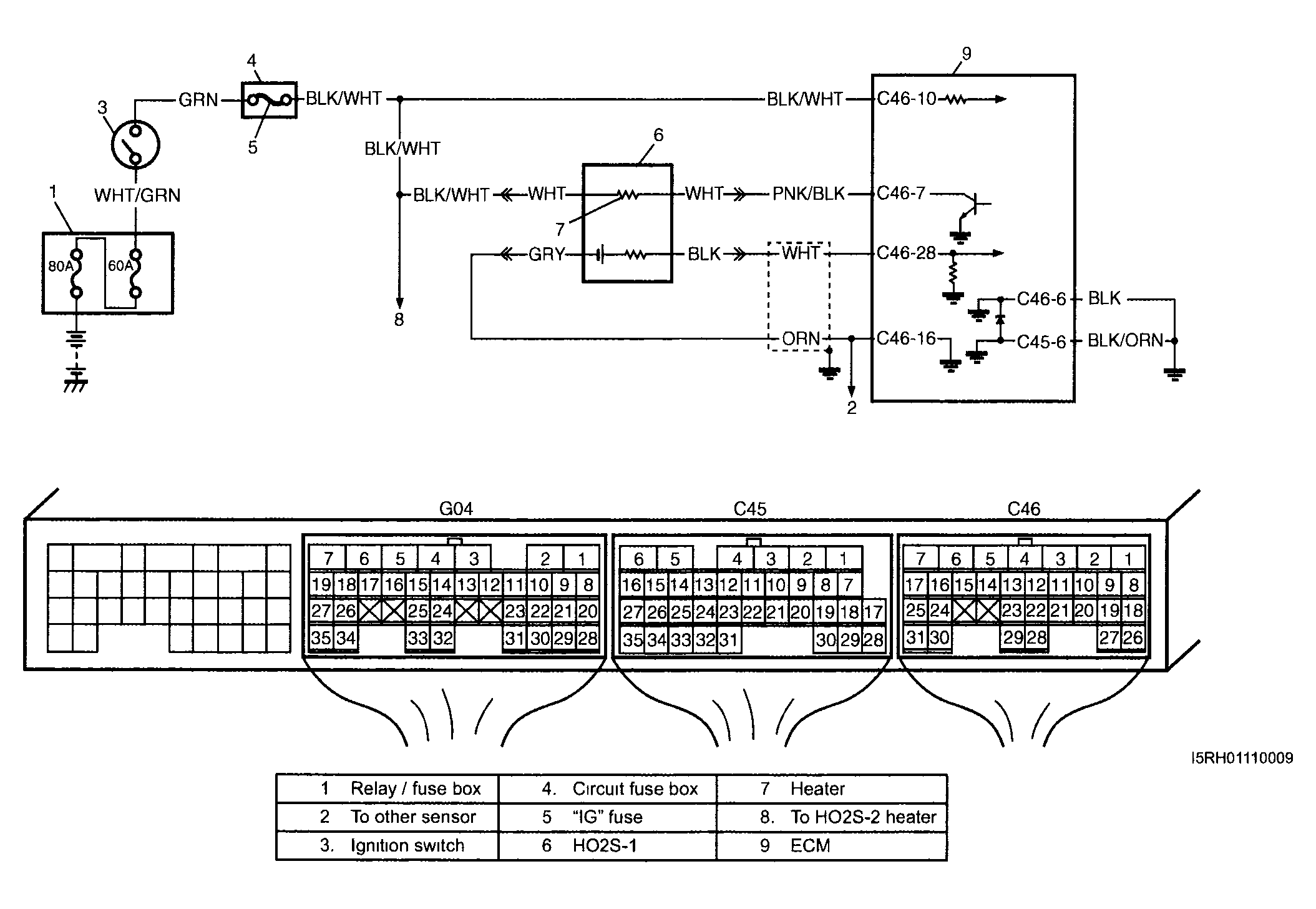

Fig 1: Heater Sensor Circuit - Wiring Diagram (DTC P0135)

G04013716

Courtesy of SUZUKI OF AMERICA CORP.
