DTC P0118: Engine Coolant Temperature Circuit High Input: Wiring Diagram

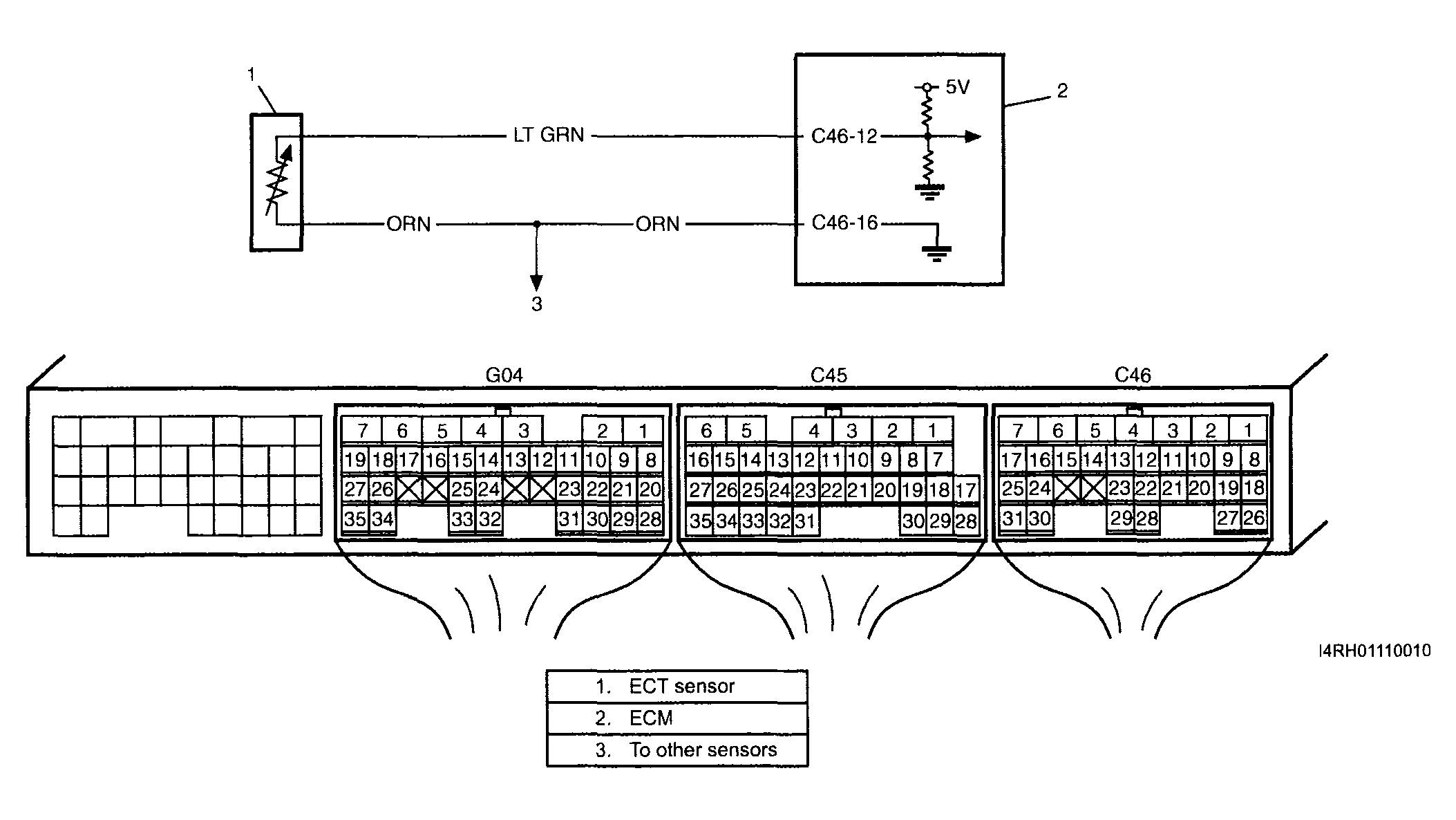

Fig 1: Engine Coolant Temperature Circuit High Input - Wiring Diagram (DTC P0118)

G04013698

Courtesy of SUZUKI OF AMERICA CORP.
